Products Home >>Manual Stages >>Manual 1" (25 mm) Linear Translation Stages >>XYZ Translation Stage with Differential Micrometers >> PT3A

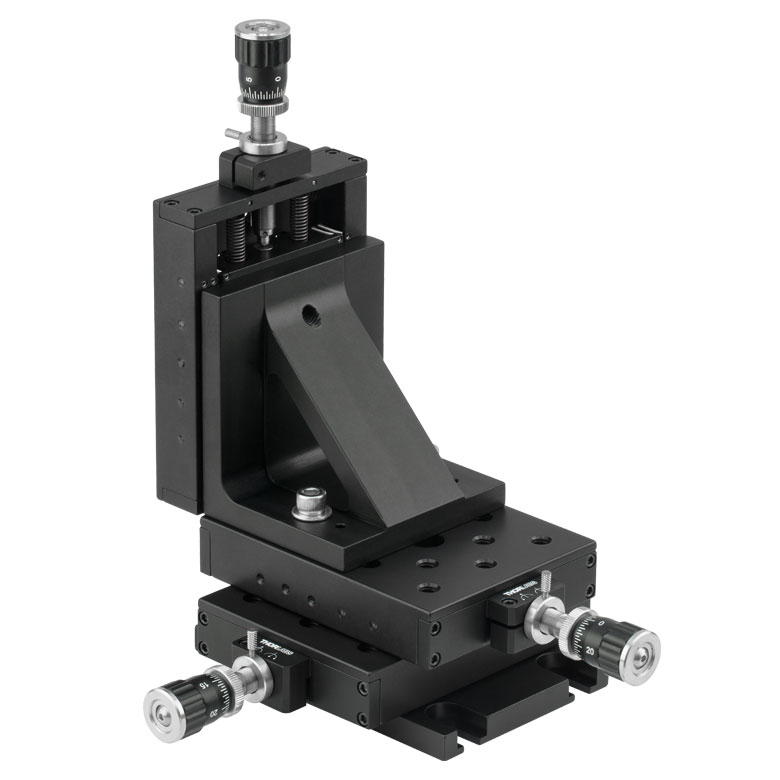

PT3A - 1" XYZ Translation Stage with Differential Micrometers
PT3A - 1in XYZ Translation Stage with DM12 Differential Micrometers
Zoom
PT3A
1in XYZ Translation Stage with DM12 Differential Micrometers
Part Number: PT3A - Ask a technical question Ask a technical question.
Weight: 5.85 lbs / Each
Available / Ships: Today
RoHS: RoHS Exempt Exempt - Exempt6
Price: $1,085.00
Add To Cart:
Qty :
PT3A Support Documentation

Catalog Page:
Documents:
Auto CAD PDF Auto CAD PDF
Auto CAD DXF Auto CAD DXF
Solidworks Solidworks
eDrawing eDrawing
Step Step
Share this Product Share this Product Print Friendly Print Friendly Add favorite Watch for updates
Product Summary:
Features
  • Preconfigured, 3-Axis, Right-Handed XYZ Translators with Differential Micrometer Drive
  • Wide Range of Compatible Actuators
  • Fully Assembled Stages Include both the PT101 and PT102 Adapters Plates
  • 1/4"-20 Mounting Holes
  • Unpackaged Weight: 1.72 kg

The PT3A is a fully assembled, 3-axis, XYZ translator. It is fitted with differential micrometers which allow for increased resolution. Each stage offers 16 1/4"-20 tapped mounting holes.
