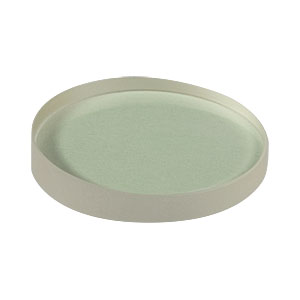

| PS810-C - Ø1" Round Wedge Prism, 2° Beam Deviation, AR Coating: 1050 - 1620 nm |
|
|
|
| Product Summary: |
| This Thorlabs' Wedge Prism is ideal for laser beam steering applications. Our wedge prism deflects a beam normal to the prism's perpendicular surface through an angular deviation of 2°.
Specifications
- Material: N-BK7 Grade A
- Dimensional Tolerance: ±0.15 mm
- Diameter: 25.4 mm +0.0/-0.3 mm
- Angular Tolerance: ±30 arcsec
- Surface Quality: 40-20 Scratch-Dig
- Surface Flatness: ?/10 at 633 nm
- Design Wavelength: 633 nm
- Thin edge of Wedge: 3.00 mm
- Broadband Antireflection (AR) Coating: 1050-1620 nm
- Angular Deviation: 2°
- Thickness (T): 4.72 mm
- Wedge Angle: 3° 53'
- Power (Diopter): 3.5
|
|
|
|
|
|
|
