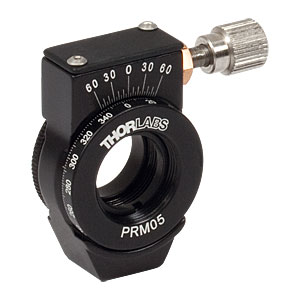

PRM05 - High Precision Rotation Mount for Ø1/2" (12.5 mm) Optics

PRM05 - High Precision Rotation Mount for Ø1/2in (12.5 mm) Optics

Zoom

PRM05
High Precision Rotation Mount for Ø1/2in (12.5 mm) Optics

Part Number:	PRM05 - Ask a technical question Ask a technical question.
Weight:	0.06 lbs / Each
Available / Ships:	Today
RoHS:	Exempt - Exempt6
Price:	$148.00
Add To Cart:	Qty :

PRM05 Support Documentation

Catalog Page:
Documents:
Auto CAD PDF
Auto CAD DXF
Solidworks
eDrawing
Step

Product Summary:

Features

Vernier Provides 10 arcmin. Resolution
360° Continuous Rotation
Direct Read 2° Graduations on Main Dial
When Locked, Fine Adjuster Driven ±7° of Fine Rotation
Compatible with our SM05 Lens Tubes
Accepts Ø1/2" Optics up to 0.23" Thick
Ideal for Ø1/2" Polarization Optics
One Retaining Ring (SM05RR) Included

The PRM05 high precision rotation mounts combine easy-to-use manual rotation with high precision, backlash-free micrometer adjustment. While the knurled dial is in the 'unlocked' position, the dial rotates smoothly and it can be coarsely adjusted using the laser engraved graduation marks. With the mount in the 'locked' position, the dial is adjusted manually via a fine drive adjuster.
