• Sturdy, Fully Welded All Steel Design
• Manually Leveling Feet to Compensate for Uneven Floors
• Set of Casters Available (PWA061)

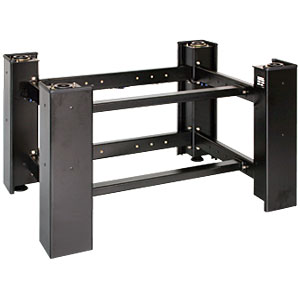

The PFP52508 passive isolation frame presents an ideal, cost effective, vibration isolation solution for optical breadboards up to 1200 mm X 750 mm (4' x 2.5') in size. The workstation is recommended for loads from 50 to 570 lb (24 to 260 kg), and has a frame height of 800 mm. The passive system is based on four independent, air mounted, passive vibration isolators. Each of the isolators needs only a onetime inflation, upon installation. With vertical and horizontal resonance frequencies of 3.5 Hz, this isolator is an ideal solution for general photonic applications in a typical lab environment. Passive isolation is particularly effective for instruments with a high center of gravity, providing the stability and stiffness required to result in rapid attenuation of vibrational disturbances.

• Frame Height: 800 mm
• Frame Size: 1200 mm X 750 mm (4' x 2.5')
• Breadboard Size: 1200 mm X 750 mm (4' x 2.5')
• Recommended Weight: 50 to 570 lb (24 to 260 kg)
• Vertical Resonant Frequency: 3.5 Hz
• Vertical Transmissibility at Resonance: 24 dB
• Vertical Transmissibility at 10Hz: -16 dB (0.15 Transmissibility Ratio)
• Height Adjustment Range: ±10 mm (0.4")
• Air Pressure Required: 415 kPa (72 psi) Maximum
• Air Connection: Schrader Value
• Finish: Black Paint
