PDA30G-EC - PbS Fixed Gain Detector, 1.0-2.9 µm, AC Coupled Amplifier,
1 kHz BW, 9 mm², 230 VAC

PDA30G-EC - PbS Fixed Gain Detector, 1.0-2.9 µm, AC Coupled Amplifier,<br /> 1 kHz BW, 9 mm<sup>2</sup>, 230 VAC

Zoom

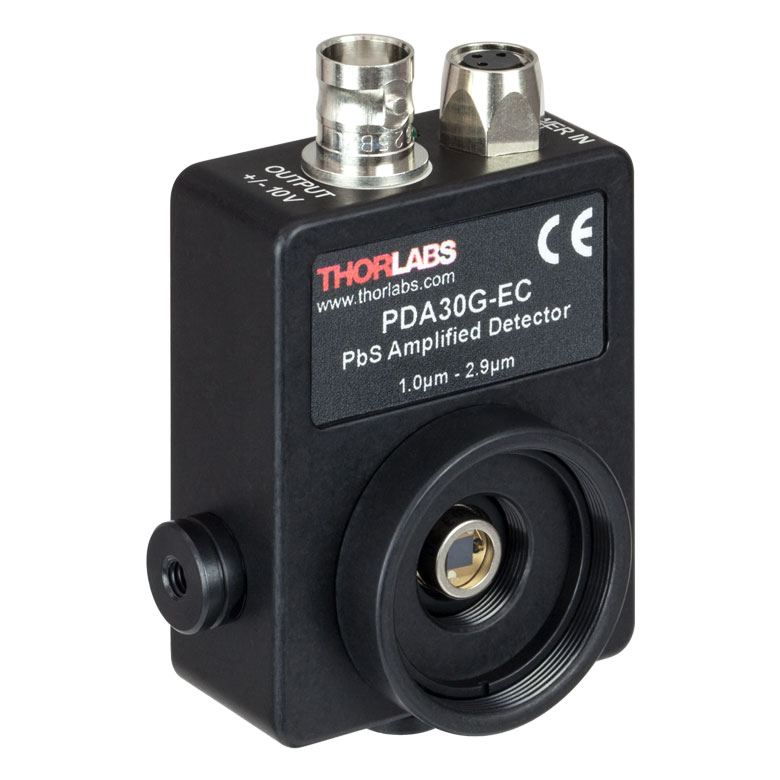

PDA30G-EC
PbS Fixed Gain Detector, 1.0-2.9 µm, AC Coupled Amplifier,
1 kHz BW, 9 mm², 230 VAC

Part Number:	PDA30G-EC - Ask a technical question Ask a technical question.
Weight:	2.54 lbs / Each
Available / Ships:	Today
RoHS:
Price:	$399.00
Add To Cart:	Qty :

PDA30G-EC Support Documentation

Catalog Page:
Documents:
Auto CAD PDF
Auto CAD DXF
Solidworks
eDrawing
Step
Spec Sheet

Product Summary:

Features

Detetor Types: PbS
Wavelength Ranges from 1.0 to 2.9 µm
Low-Noise, Wide Band Amplifiers
Fixed Gain
0 to 10 V Output
Compatible with SM1 and Some SM05 Series Products
Threaded Mount for Ø1"" (Ø25 mm) Optics Included
Power Supply Included

The PDA30G-EC Amplified Photodetector is housed in a compact, low profile package and is designed for the detection of light in the NIR spectrum. The module has a thin profile to allow access to light paths with a minimal footprint. All connections and controls are located perpendicular to the light path, providing increased accessibility. Amplification is provided by low noise transimpedance or voltage amplifiers that are capable of driving 50 Ohm loads. Signal output is via a BNC connector.

Specifications

Sensor: Ge (NIR)
Active Area: 19.6 mm² (Ø5.0 mm)
Wavelength Range: 1.0 – 2.9 µm
Peak Response: 1.5 × 10⁶ V/W @ 2.2 µm
Bandwidth 0.2 - 1 kHz
NEP Range (W/Hz^1/2): 1.5 × 10 ^-11
Rise Time: 350 µs
