PDA25K - GaP Switchable Gain Detector, 150-550 nm, 7.5 MHz BW, 4.8 mm2,
120 VAC |
|
|
|
| Product Summary: |
Features
- Detetor Types: GaP
- Wavelength Ranges from 150 to 550 nm
- Low-Noise, Wide Band Amplifiers
- Switchable Gain
- 0 to 10 V Output
- Compatible with SM1 and Some SM05 Series Products
- Threaded Mount for Ø1" (Ø25 mm) Optics Included
- Power Supply Included

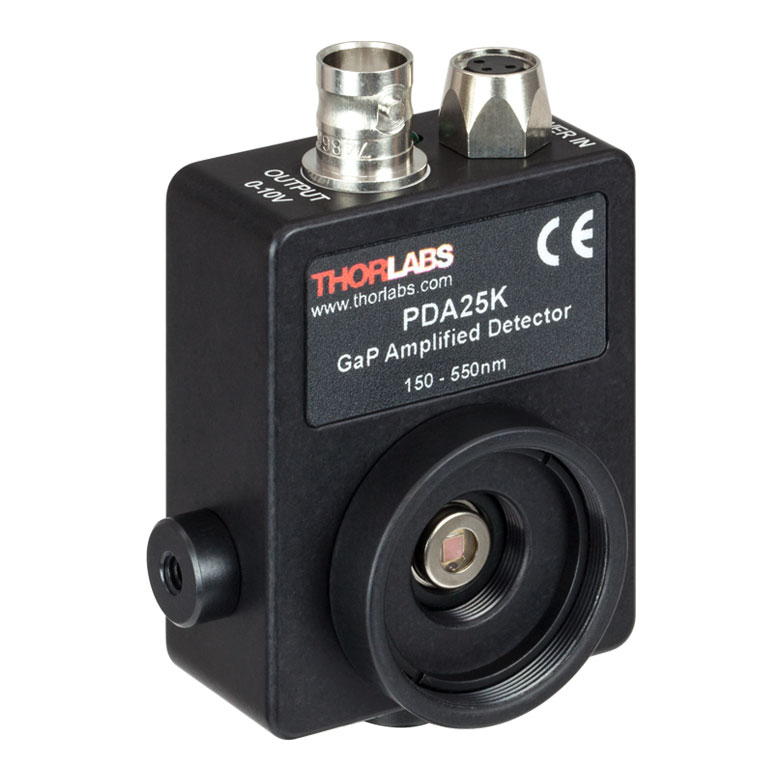

The PDA25K Amplified Photodetector is housed in a compact, low profile package, and is designed for the detection UV and visible light. The module has a thin profile to allow access to light paths with a minimal footprint. All connections and controls are located perpendicular to the light path, providing increased accessibility. Amplification is provided by low noise transimpedance or voltage amplifiers that are capable of driving 50 Ohm loads. Signal output is via a BNC connector.
Specifications
- Sensor: GaP (UV-VIS)
- Active Area: 6.5 mm2 (2.54 × 2.54 mm)
- Wavelength Range: 150 – 550 nm
- Peak Response: 0.12 A/W @ 440 nm
- Bandwidth DC-7.5 MHz
- NEP Range (W/Hz1/2): 7.0 × 10 -12 - 3.0×10-10
- Rise Time: 46.6 ns
|
|
|
|
|
