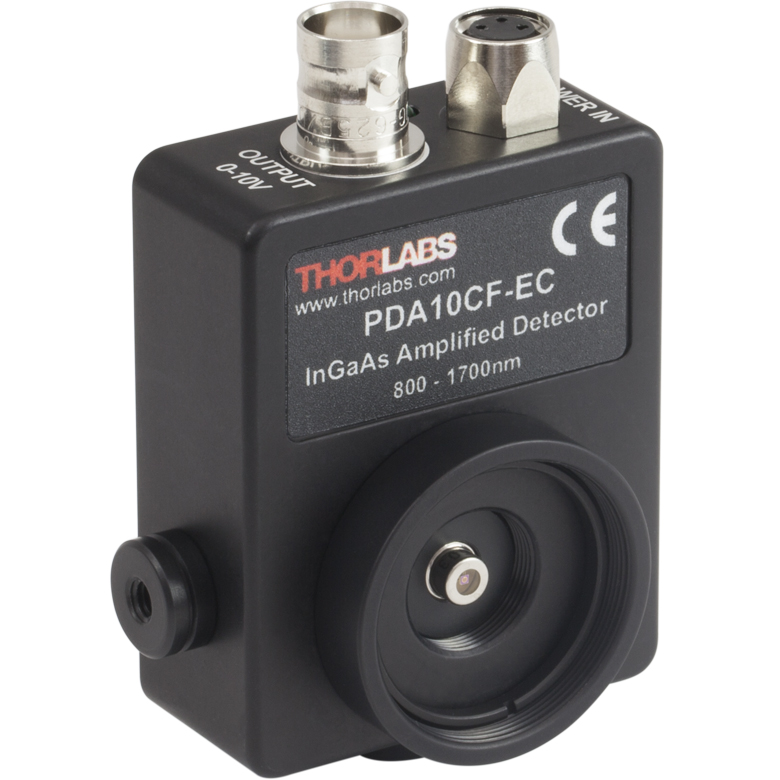

| PDA10CF-EC - InGaAs Fixed Gain Detector, 700-1800 nm, 150 MHz BW, 0.2 mm2, 230 VAC |
|
|
|
| Product Summary: |
Features
- Detetor Types: InGaAs
- Wavelength Ranges from 700 to 1800 nm
- > Low-Noise, Wide Band Amplifiers
- Fixed Gain
- 0 to 10 V Output
- Compatible with SM1 and Some SM05 Series Products
- Threaded Mount for Ø1" (Ø25 mm) Optics Included
- Power Supply Included
The PDA10CF-EC Amplified Photodetector is housed in a compact, low profile package and is designed for the detection of light in the NIR spectrum. The module has a thin profile to allow access to light paths with a minimal footprint. All connections and controls are located perpendicular to the light path, providing increased accessibility. Amplification is provided by low noise transimpedance or voltage amplifiers that are capable of driving 50 Ohm loads. Signal output is via a BNC connector.
Specifications
- Sensor: InGaAr (NIR)
- Active Area: 0.2 mm2 (Ø0.5 mm)
- Wavelength Range: 700 – 1800 nm
- Peak Response: 0.95 A/W @ 1550 nm
- Bandwidth DC-150 MHz
- NEP Range (W/Hz1/2): 1.2 × 10 -12
- Rise Time: 2.3 ns
|
|
|
|
|
|
|
