• Triple-Plate Double Core StableTop™ Construction Significantly Increases Rigidity
• Enhanced Damping Improves Dynamic Performance for the Most Critical Laboratory Applications
• Sealed Mounting Holes Make it Simple to Contain and Clean Up Spills or Retrieve Small Objects
• Plated Steel Sealing Cup Honeycomb Structure

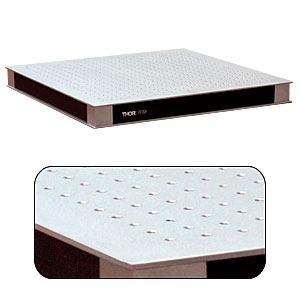

Thorlabs PBI51512, 1200 mm x 750 mm x 60 mm, PerformancePlus™ Optical Breadboard is designed specifically for demanding R&D applications. It combines all the features of the Performance™ breadboards but with enhanced damping, increased rigidity, and sealed mounting holes. This breadboard is stocked in the UK.

The PerformancePlus breadboards incorporate a triple plate (top, bottom and middle), double-honeycomb design, providing unsurpassed stiffness and excellent dynamic rigidity. The top layer consists of a stainless steel top plate and a secondary steel plate, separated by a unique plated steel honeycomb-like structure. The second layer adds the main steel honeycomb structure and the stainless steel bottom plate. The main honeycomb core is fabricated from strips of precision-formed plated steel, which is bonded together with a high tensile strength epoxy adhesive. The thinner, honeycomb-like top structure is made from cylindrical-shaped steel cups, which enhance the overall stiffness of the breadboard and provide improved support of the top plate.

For more information, use the breadcrumb links at the top of this page to go back to the “Performance Series II Breadboards” main page.

• Finish and Construction
• Dimensions: 1200 mm x 750 mm x 60 mm
• Breadboard Thickness: 60 mm (2.4")
• Flatness: ±0.1 mm (±0.004") over any 0.3 m²
• Construction: Triple-Plate, Double Honeycomb-Core, Athermalized Design with Matching Plate Materials for Maximum Thermal Stability
• Top and Bottom Plates: Matched materials for Athermalized Design, Magnetic Stainless Steel, 5mm (3/16") Thick
• Main Core: High Density Plated Steel Honeycomb
• Intermediate Core: Plated Steel Sealing Cup Honeycomb Structure, 13 mm (0.15") Thick, Cell Size Approximately 1.6 cm²(0.25"²)
• Damping: Enhanced (Proprietary Tuned And Broadband Damping)
• Sides: Black Laminated-Steel Sides, Slightly Inset
• Finish: Top Plate is Brush Finished
• Mounting
• M6 Tapped on 25 mm Centers
• Distance from Edge to First Holes: 50 mm on All Sides
• Max Screw Depth: 6 mm from Breadboard Surface
