• Narrow Key Aligned to Slow Axis
• Typical Return Loss of 50 dB
• Ceramic 8° Angled Ferrules (APC)
• Ø3 mm Protective Outer Jacket

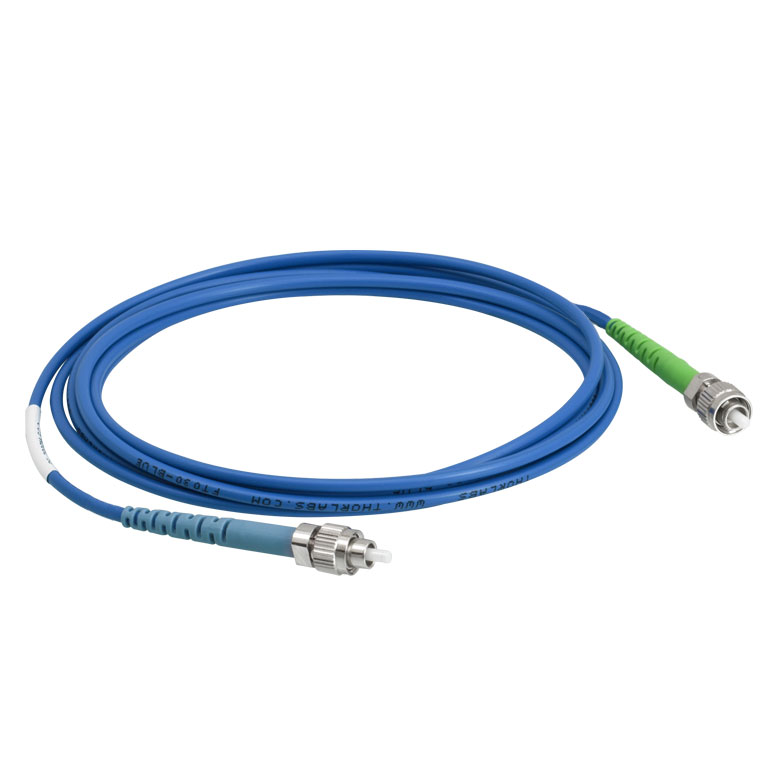

The P5-780PM-FC-2 fiber patch cable is connectorized on both ends with high-quality, narrow key, ceramic connectors: one FC/APC (green boot) and one FC/PC (blue boot). Manufactured in our facility, this cable is individually tested to ensure its extinction ratio and low back-reflection (return loss) at fiber-to-fiber junctions. This cable is available from stock and features a high quality polish, which leads to a typical return loss of over 50 dB.

• Design Wavelength: 780 nm
• Operating Wavelength: 770-1100 nm
• Cutoff Wavelength: 710 ± 60 nm
• Fiber Type: PM780-HP (Panda)
• Max Insertion Loss: 1.0 dB
• Min Extinction Ratio: 20 dB
• Mode Field Diameter: 5.3 ± 1.0 µm @ 850 nm
• NA: 0.12
• Optical Return Loss: 50 dB/60 dB Typical
• Connector Type: 1 FC/PC, 1 FC/APC
• Key Width: 2.00 mm ± 0.02
• Key Alignment Type: Narrow Key Aligned to Slow Axis or as Specified
• Fiber Length: 2 m
• Jacket Type: FT030-BLUE
• Operating Temperature: 0 to 70 °C
• Storage Temperature: -45 to 85 °C
