• Operating Wavelength Range: 1260-1620 nm
• Low Back Reflections (High Return Loss): 60 dB (Typ.)
• Each Cable is Individually Tested
• Ø3 mm Outer Jacket
• 5 Meters Long

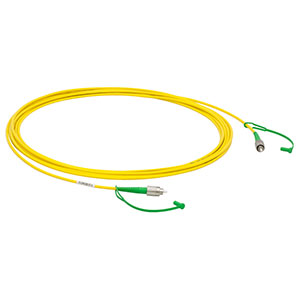

This FC/APC, 5 m long, patch cable is ideal for systems that are sensitive to back reflections. The narrow key connector utilizes a ferrule that has an 8° angle polished tip, ensuring return losses in excess of 60 dB. Each cable is FC/APC connectorized on both ends.

Mating sleeves are available to connect FC to FC, SMA to SMA, and FC to SMA connectors. These mating sleeves minimize back reflections and ensure proper alignment of the cores of each connectorized fiber end.

• Fiber Type: SMF-28e+
• Operating Wavelength: 1260 - 1620 nm
• Cutoff Wavelength: <1260 nm
• Mode Field Diameter (MFD): 9.2 ± 0.4 µm @ 1310 nm, 10.5 ± 0.5 µm @ 1550 nm
• Cladding Diameter: 125 ± 1.0 µm
• Coating Diameter: 245 ± 5 µm
• Attenuation (Max): ≤0.40 dB/km
• NA: 0.14
• Insertion Loss: <0.3 dB Loss (Connector to Connector) @ 1310 nm
• Length: 5 m
• Protective Jacketing: Ø3 mm, Yellow
