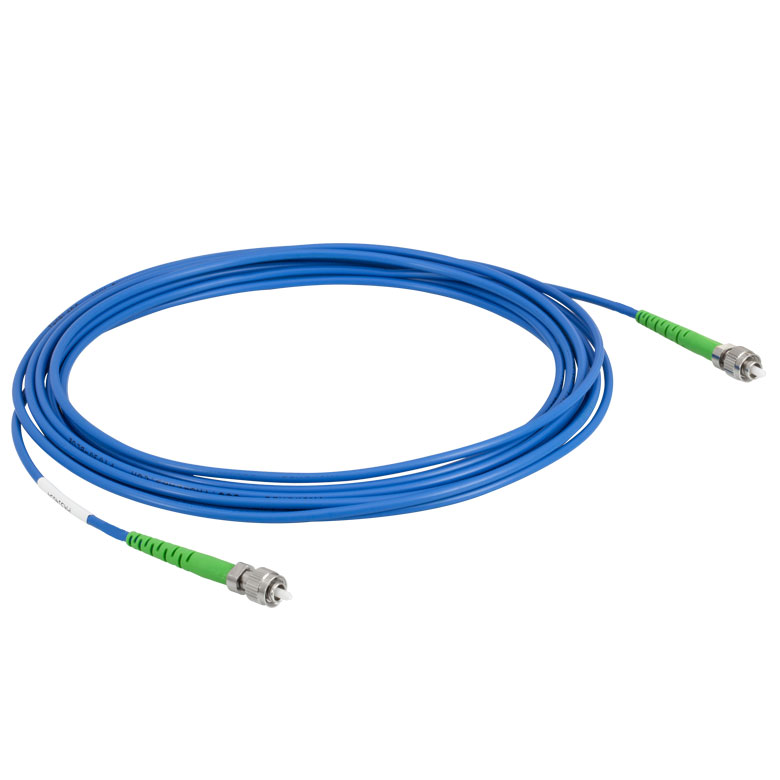

| P3-1550PM-FC-5 - Patch Cable, PM, FC/APC, 1550 nm, Panda Style, 5 m |
|
|
|
| Product Summary: |
Features
- Narrow Key Aligned to Slow Axis
- Typical Return Loss of 60 dB
- Ceramic 8° Angled Ferrules (APC)
- 5 m Long
- Ø3 mm Protective Outer Jacket
The P3-1550PM-FC-5 fiber patch cable is connectorized on both ends with high-quality, narrow key, ceramic FC/APC connectors. Manufactured in our facility, this cable is individually tested to ensure its extinction ratio and low back-reflection (return loss) at fiber-to-fiber junctions. Available from stock, the cable features a high quality polish, which leads to a typical return loss of over 60 dB.
Specifications
- Design Wavelength: 1550 nm
- Operating Wavelength: 1440 - 1625 nm
- Fiber Type: PM1550-HP
(Panda)
- Max Insertion Loss: 0.5 dB
- Min Extinction Ratio: 23 dB
- Mode Field Diameter: 10.5 ± 0.8 µm @ 1550 nm
- Numerical Aperture: 0.13
- Operation Return Loss: 60 dB Typical
- Connector Type: FC/APC
- Key Width: 2.00 mm ± 0.02
- Key Alignment Type: Narrow Key Aligned to Slow Axis or as Specified
- Fiber Length: 5 m
- Jacket Type: FT030-BLUE
- Operating Temperature: 0 -70°C
- Storage Temperature: 45 - 85°C
|
|
|
|
|
|
|
|
