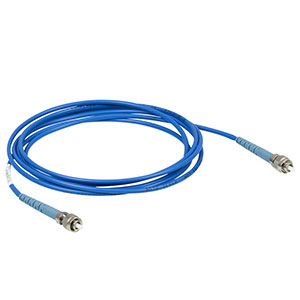

| P1-630PM-FC-2 - Patch Cable, FC/PC, 630 nm, PM, Panda Style, 2 m |
|
|
|
| Product Summary: |
Features
- Narrow Key Aligned to Slow Axis
- Typical Return Loss of 50 dB (40 dB Min)
- Ceramic Radiused Ferrules (UPC)
- Ø3 mm Protective Outer Jacket
The P1-630PM-FC-2 fiber patch cable is connectorized on both ends with high-quality, narrow key, ceramic FC connectors. Manufactured in our facility, this cable is individually tested to ensure its extinction ratio and low back-reflection (return loss) at fiber-to-fiber junctions. This cable is available from stock and features a high quality polish, which leads to a typical return loss of over 50 dB.
Specifications
- Design Wavelength: 630 nm
- Operating Wavelength: 620-820 nm
- Cutoff Wavelength: 570 ± 50 nm
- Fiber Type: PM630-HP (Panda)
- Max Insertion Loss: 1.2 dB
- Min Extinction Ratio: 20 dB
- Mode Field Diameter: 4.5 ± 0.5 µm @616 nm
- NA: 0.11
- Optical Return Loss: 50 dB Typical
- Connector Type: FC/PC
- Key Width: 2.00 mm ± 0.02
- Key Alignment Type: Narrow Key Aligned to Slow Axis or as Specified
- Fiber Length: 2 m
- Jacket Type: FT030-BLUE
- Operating Temperature: 0 to 70 °C
- Storage Temperature: -45 to 85 °C
|
|
|
|
|
|
|
