• Operating Wavelength Range: 1460-1620 nm
• Low Back Reflections (High Return Loss): 50 dB Typical (40 dB Min)
• <0.3 dB Loss Connector to Connector @ 1550 nm
• Each Cable is Individually Tested
• Ø3 mm Outer Jacket
• Available from Stock

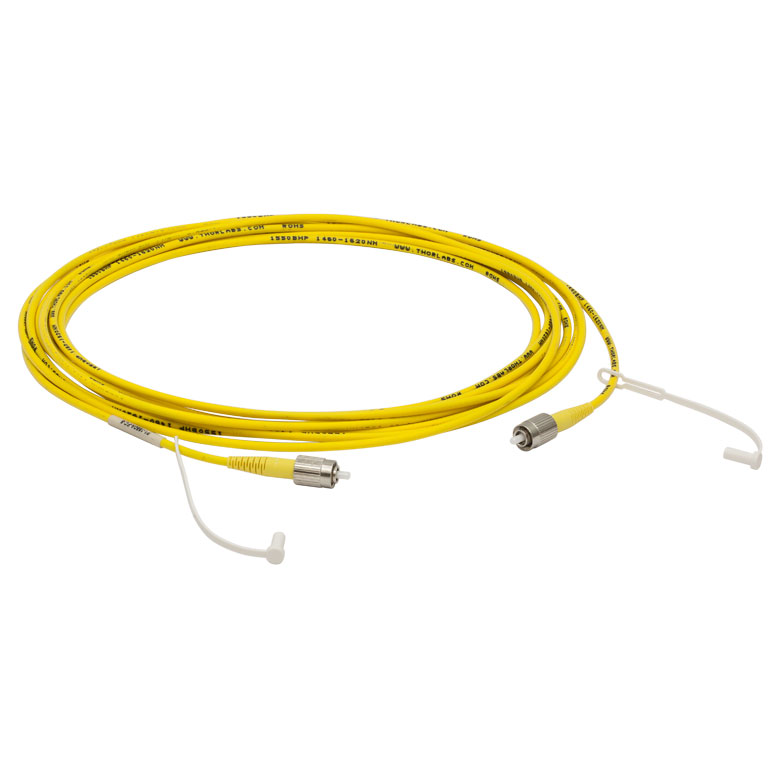

This Single Mode Patch Cable with FC/PC connectors on both ends is 5 meters long. It is manufactured in our facility on state-of-the-art equipment and individually tested to ensure low back reflection (return loss) at fiber-to-fiber junctions. Available from stock, these cables feature Ø3 mm PVC protective jackets with internal kevlar threads for durability in the lab.

Mating sleeves are available to connect FC to FC, SMA to SMA, and FC to SMA connectors. These mating sleeves minimize back reflections and ensure proper alignment of the cores of each connectorized fiber end.

• Fiber Type: 1550BHP
• Operating Wavelength: 1460-1620 nm
• Mode Field Diameter (MFD): 9.5 ± 0.5 µm @ 1550 nm
• Cladding Diameter: 125 ± 1.0 µm
• Coating Diameter: 250 ± 15 µm
• Cutoff Wavelength: 1400 ± 50 nm
• Attenuation (Max): ≤0.5 dB/km @ 1550 nm
• NA: 0.13
• Protective Jacketing: Ø3 mm, Yellow
• Insertion Loss: <0.3 dB Loss (Connector to Connector) @ 1550 nm
• Length: 5 m
