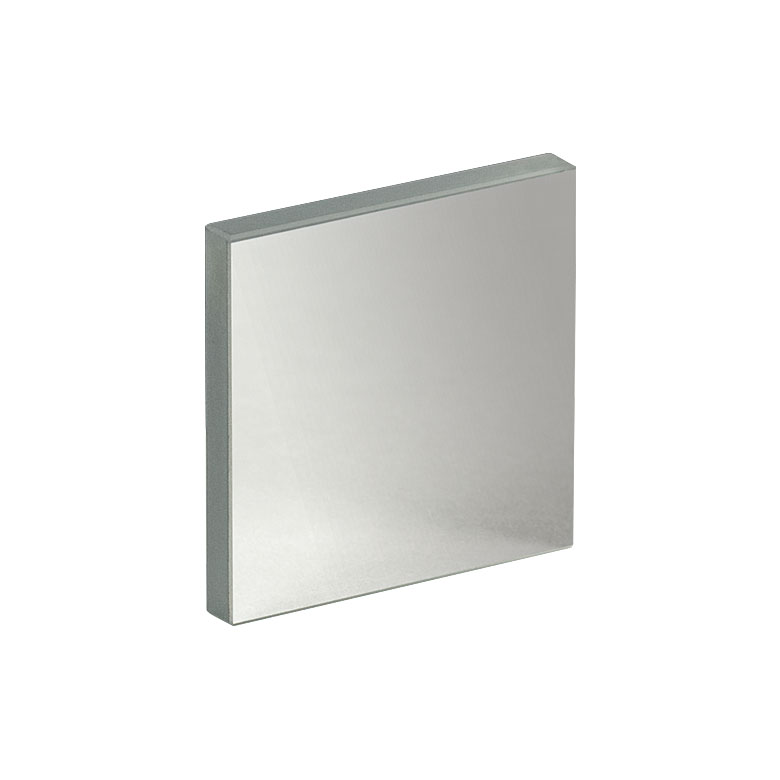

| ME1S-G01 - 1" Square Protected Aluminum Mirror, 3.2 mm Thick |
|
|
|
| Product Summary: |
This aluminum-coated mirror provides a cost-effective solution for separating closely spaced beams. A protective overcoat is layered over bare aluminum, creating a damage resistant surface. Our protected aluminum mirrors feature >90% reflection in the 450 nm to 2 µm range.
Specifications
- Coating: Protected Aluminum
- Thickness: 3.2 ± 0.25 mm
- Reflectivity: Ravg >90% 450 nm – 2 µm; Ravg > 95% 2-20 µm
- Damage Threshold: 0.3 J/cm2 1063 nm, 10 ns, 10 Hz, Ø1.000 mm
- Front Surface Flatness: <5?/in2 @ 633 nm
- Dimensions: 1" x 1"
- Clear Aperture: >90% of Surface
- Surface Quality: 60-40 Scratch-Dig
|
|
|
|
|
|
|
