• Mount Provides Hassle-Free Alignment
• Pre-Mounted Filter Cubes Available

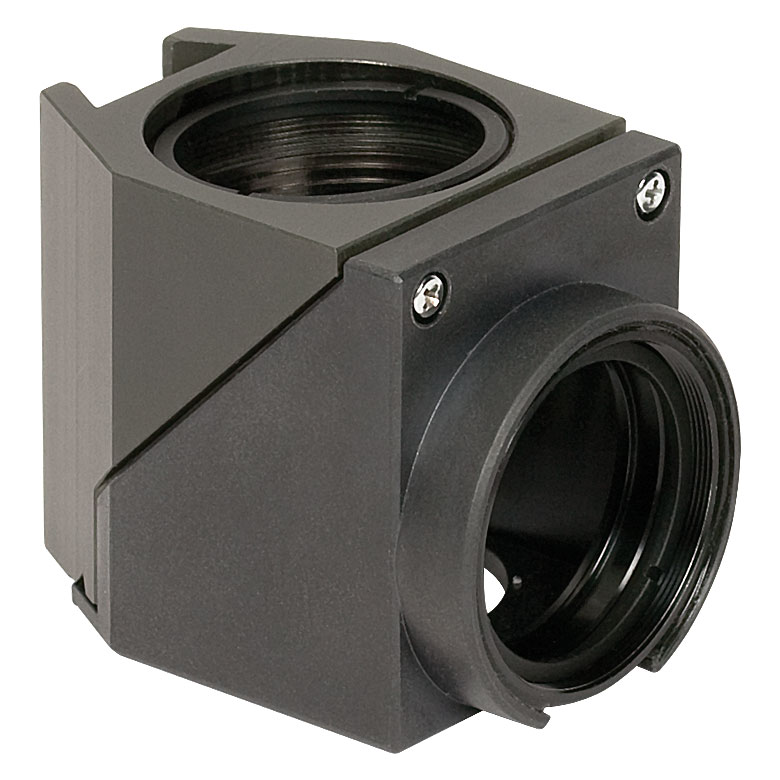

This drop-in filter cube for Olympus AX, BX, and IX microscopes holds one Fluorescence Filter Set, which includes a Ø25 mm emission filter, Ø25 mm excitation filter, and 25.2 mm x 35.6 mm dichroic mirror. Optics can be mounted, aligned, and swapped out easily.

This drop-in filter cube is offered as an empty mount but if a Thorlabs Fluorescence Filter Set is purchased at the same time, we will premount the optics at no additional charge. In order to take advantage of this option, please contact Technical Support prior to ordering. Other sets may be ordered and interchanged by the user. Other excitation filters (Ø25 mm, 5.0 mm thick), emission filters (Ø25 mm, 3.5 mm thick), and dichroic mirrors (25.2 mm x 35.6 mm x 1.05 mm) may be used in the filter cube for specific wavelength applications.

• Microscope Manufacturer: Olympus
• Microscopes: AX, BX, and IX Series
• Manufacturer Part #: U-MF2
