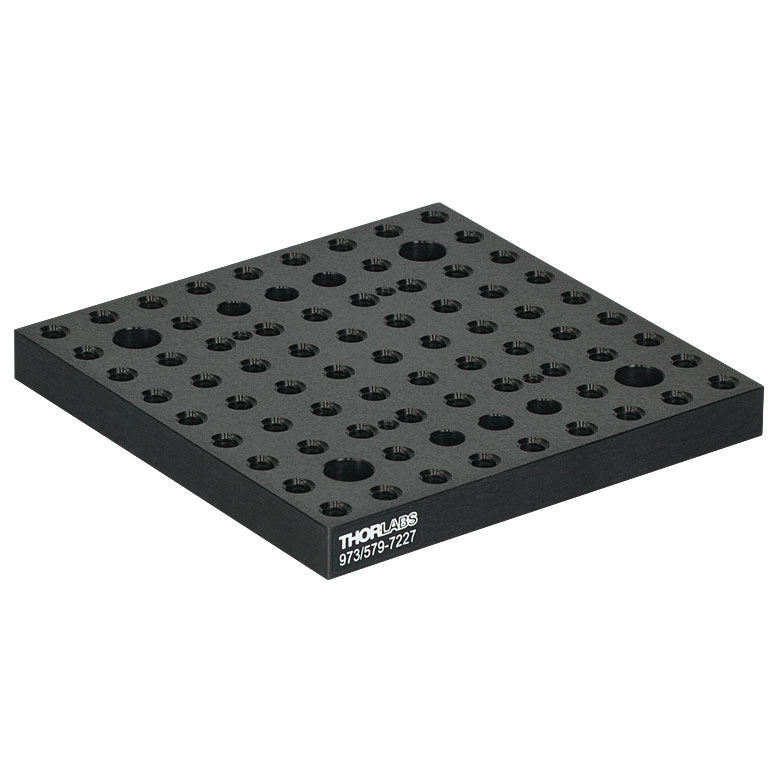

MB4A - Aluminum Breadboard, 4.5" x 4.5" x 1/2", 1/4"-20 Threaded
MB4A - Aluminum Breadboard 4.5in x 4.5in x 1/2in, 1/4in-20 Threaded
Zoom
MB4A
Aluminum Breadboard 4.5in x 4.5in x 1/2in, 1/4in-20 Threaded
Part Number: MB4A - Ask a technical question Ask a technical question.
Weight: 0.79 lbs / Each
Available / Ships: Today
RoHS: RoHS Compliant
Price: $58.00
Add To Cart:
Qty :
MB4A Support Documentation

Catalog Page:
Documents:
Auto CAD PDF Auto CAD PDF
Auto CAD DXF Auto CAD DXF
Solidworks Solidworks
eDrawing eDrawing
Step Step
Share this Product Share this Product Print Friendly Print Friendly Add favorite Watch for updates
Product Summary:

Features

  • 1/4-20" Tapped Holes (Qty. 71)
  • 8-32 Tapped Holes (Qty. 4)
  • 1/4" Counterbored Clearance Holes (Qty. 4)
  • #8 Counterbored Clearance Holes (Qty. 6)
  • Manual Height Adjustment Achieved via a 1/4"-20 Cap Screw

This replacement adapter plate for the C1525 Mounting Post Clamp provides additional versatility. The counterbored plate allows devices that have 8-32 or 1/4"-20 apped mounting holes to be easily attached to the C1525 mounting post clamp.
