• N-BK7 Mounted Spherical Singlets Packaged into Kits
• Kits Contain Ø1" Lenses AR Coated for 650 - 1050 nm
• Each Lens Housing is Laser Engraved and SM Compatible
• Offered at a Savings Over Purchasing the Lenses Individually

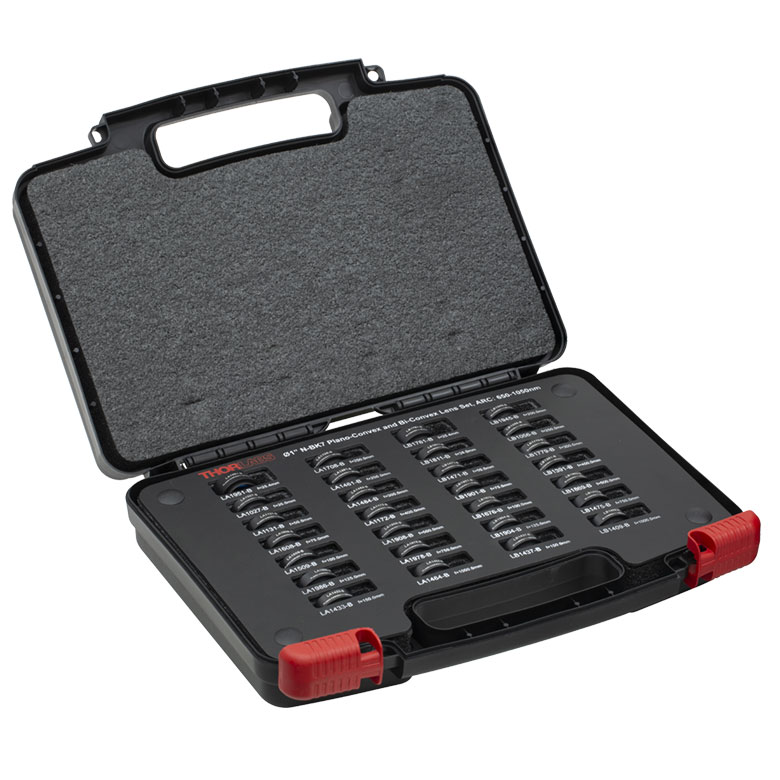

Thorlabs has taken its most popular Ø1" N-BK7 spherical singlet lenses, housed them in a laser laser-engraved SM-compatible lens tubes, and packaged them into kits. This kit combines various lenses from our plano-convex and bi-convex lines.

Each black anodized lens housing features external SM1 (1.035"-40) threading, making it directly compatible with the multitude of Thorlabs mounts and housing that feature this thread standard. In addition, the housings are laser engraved with the item number, lens type, focal length, and antireflection coating range.

• Diameter:Ø1"
• Material: N-BK7
• Focal Lengths (mm):
  • Plano-Convex: 25.4, 35, 50, 75, 100, 125, 150, 200, 250, 300, 400, 500, 750, 1000
  • Bi-Convex: 25.4, 35, 50, 75, 100, 125, 150, 200, 250, 300, 400, 500, 750, 1000
• Included Item Numbers:
  • Plano-Convex: LA1951-B, LA1027-B, LA1131-B, LA1608-B, LA1509-B, LA1986-B, LA1433-B, LA1708-B, LA1461-B, LA1172-B, LA1908-B, LA1978-B, LA1464-B, LA1484-B
  • Bi-Convex: LB1761-B, LB1811-B, LB1471-B, LB1901-B, LB1676-B, LB1904-B, LB1437-B, LB1945-B, LB1056-B, LB1779-B, LB1391-B, LB1869-B, LB1475-B, LB1409-B
