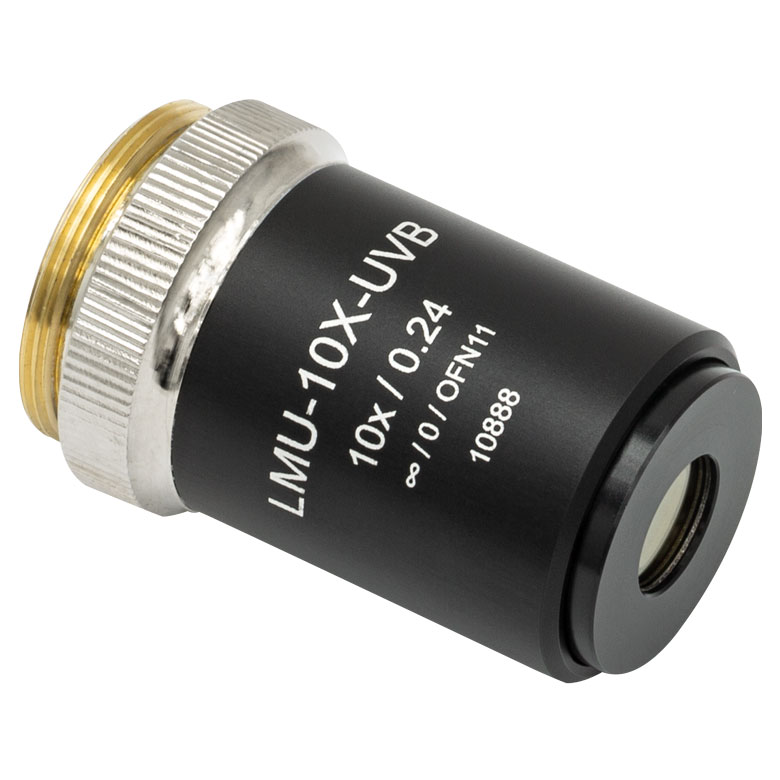

| LMU-10X-UVB - MicroSpot Focusing Objective, 10X, 240 - 360 nm, NA=0.25 |
|
|
|
| Product Summary: |
Features
- Diffraction-Limited Performance for Beam Diameters up to 70% of Clear Aperture
- Long Working Distance
- Large Entrance Aperture
- Infinite Conjugate
- RMS Threaded
- Air-Spaced Design
Thorlabs LMU-10X-UVB, 10X, Broadband, UV objective has lens elements made from the highest grade CaF2 and excimer grade UV fused silica. This microscope objective can be mounted directly to our fiber launch systems, or it can be mounted to any of our flexure stages using a HCS013 RMS mount. Alternatively, this microscope objective can be easily mounted in our cage system, lens tubes, or other SM1 compatible optomechanics using an SM1A3 adapter.
Specifications
- Magnification: 10X
- Working Distance: 15 mm
- Effective Focal Length: 20 mm
- NA: 0.25
- Theoretical Focal Spot: 2 µm
- Entrance Aperture: 10 mm
- AR Coating Range: 240-360 nm
- Damage Threshold (20 ns Pulses @ 20 Hz): 50 MW/cm2
- Max Reflectivity per Lens Surface: 0.015
|
|
|
|
|
|
|
|
