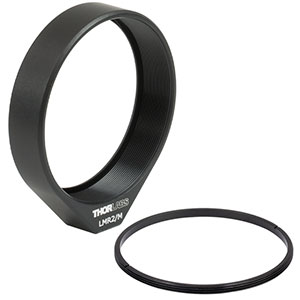

LMR2/M - Metric, Lens Mount for Ø2" Optics, One Retaining Ring Included

LMR2/M - Metric Lens Mount For 2in Optics

Zoom

LMR2/M
Metric Lens Mount For 2in Optics

Part Number:	LMR2/M - Ask a technical question Ask a technical question.
Weight:	0.05 lbs / Each
Available / Ships:	Today
RoHS:
Price:	$23.50
Add To Cart:	Qty :

LMR2/M Support Documentation

Catalog Page:
Documents:
Auto CAD PDF
Auto CAD DXF
Solidworks
eDrawing
Step

Product Summary:

Features

Accommodates Ø2" Optics
Internally Threaded
M4 Tapped Hole Allows for Mounting to Ø1/2" Posts
Secure Optic Between the Back Lip and the Included Retaining Ring
Excellent for Fixed Mounting of SM-Threaded Components

The LMR2/M traditional fixed optic mount is available diameter optics. It feature internal threading, and comes complete with one retaining ring for securing the optic in place. It has M4 tapped holes for mounting to Ø1/2" posts.

Specifications

Optic Diameter: Ø2"
Max Optic Thickness: 9.1 mm
Clear Aperture: Ø48.5 mm
Optical Height: 34.3 mm
Included Retaining Ring: SM2RR
Spanner Wrench: SPW604
Unpackaged Weight: 19.1 g
