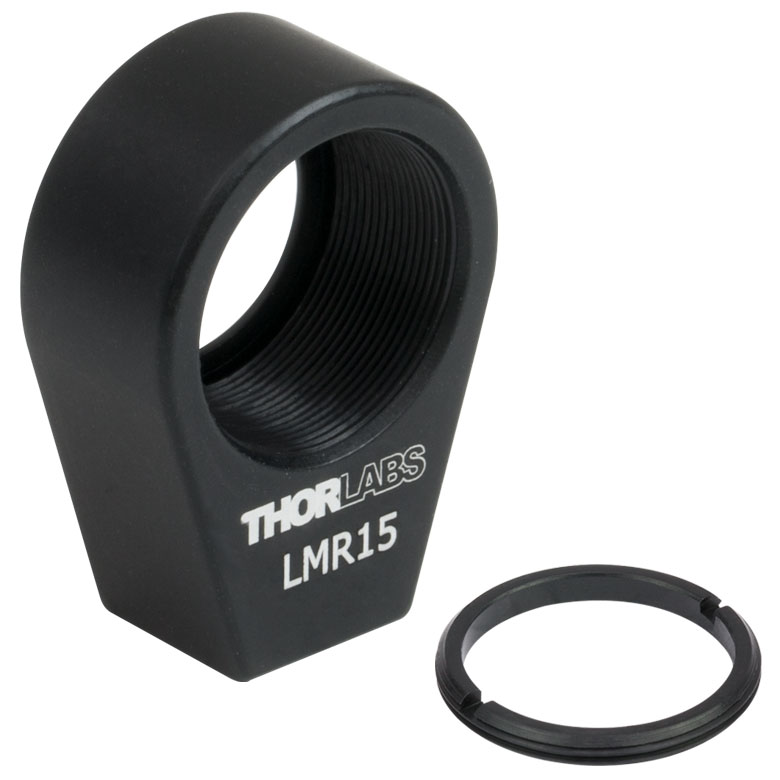

LMR15 - Lens Mount for Ø15 mm Optics, One Retaining Ring Included

Zoom

LMR15
Lens Mount for Ø15 mm Optics, One Retaining Ring Included

Part Number:	LMR15 - Ask a technical question Ask a technical question.
Weight:	0.02 lbs / Each
Available / Ships:	Today
RoHS:
Price:	$20.00
Add To Cart:	Qty :

LMR15 Support Documentation

Catalog Page:
Documents:
Auto CAD PDF
Auto CAD DXF
Solidworks
eDrawing
Step

Product Summary:

LMR15 Features

Accommodates Ø15 mm Optics
Internally Threaded
8-32 Tapped Hole Allows for Mounting to Ø1/2" Posts
Secure Optic Between the Back Lip and the Included Retaining Ring
Excellent for Fixed Mounting of SM-Threaded Components

The LMR15 traditional fixed optic mount is available diameter optics. It feature internal threading, and comes complete with one retaining ring for securing the optic in place. It has 8-32 tapped holes for mounting to Ø1/2" posts.

Specifications

Optic Diameter: Ø15 mm
Max Optic Thickness: 0.30"
Clear Aperture: Ø0.50"
Optical Height: 0.70"
Included Retaining Ring: SM15RR
Spanner Wrench: SPW801
