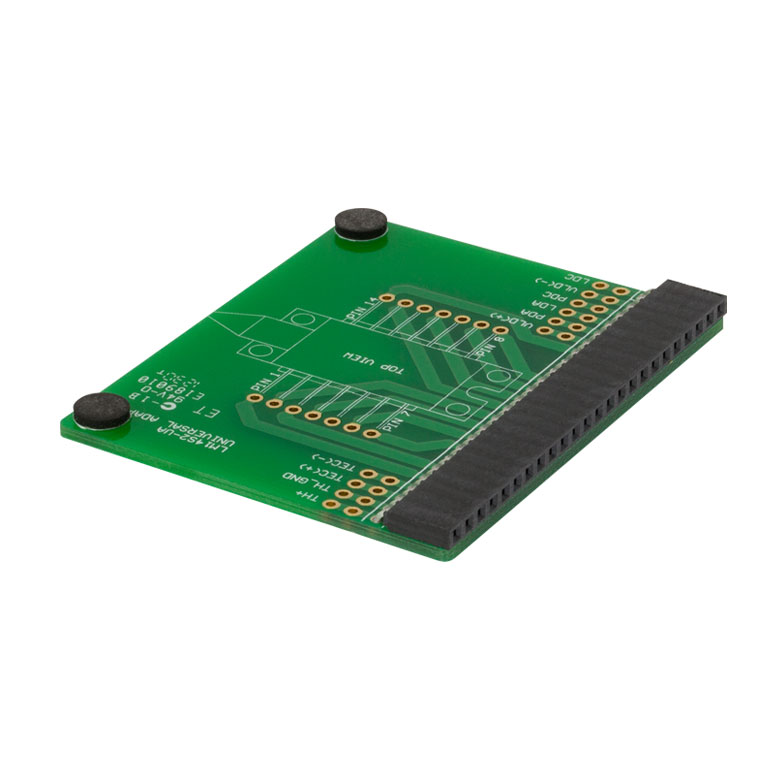

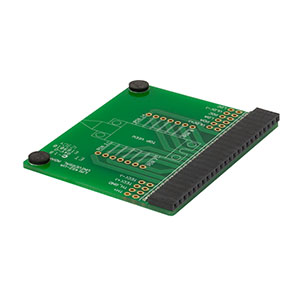

| LM14S2-UA - LM14S2 Universal Adapter Card for Custom PIN Configuration |
|
|
|
| Product Summary: |
| Features
Easy Integration with Thorlabs’ LM14S2 Diode Mount
User-Configurable Card
Type 1 and Type 2 Pinout Configurations
The LM14S2-UA is a user-configurable designed to allow custom wiring of the mount. The LM14S2-UA is compatible with anode-grounded diodes. This IC card is designed to be used with the LM14S2 butterfly laser mount.
Specifications
- Max Laser Current: 5 A
- Polarity of Laser Diode: Anode Ground
- Polarity of Monitoring Diode: Floating
- Max TEC Current: 5 A
- Temperature Range: 0 – 70 °C
- Temperature Coefficient of Heat Sink: 3 °C/W
- RF Modulation Frequency: 0.1 – 500 MHz
- Max RF Power: 200 mW or Limit of Laser Diode
|
|
|
|
|
|
|
