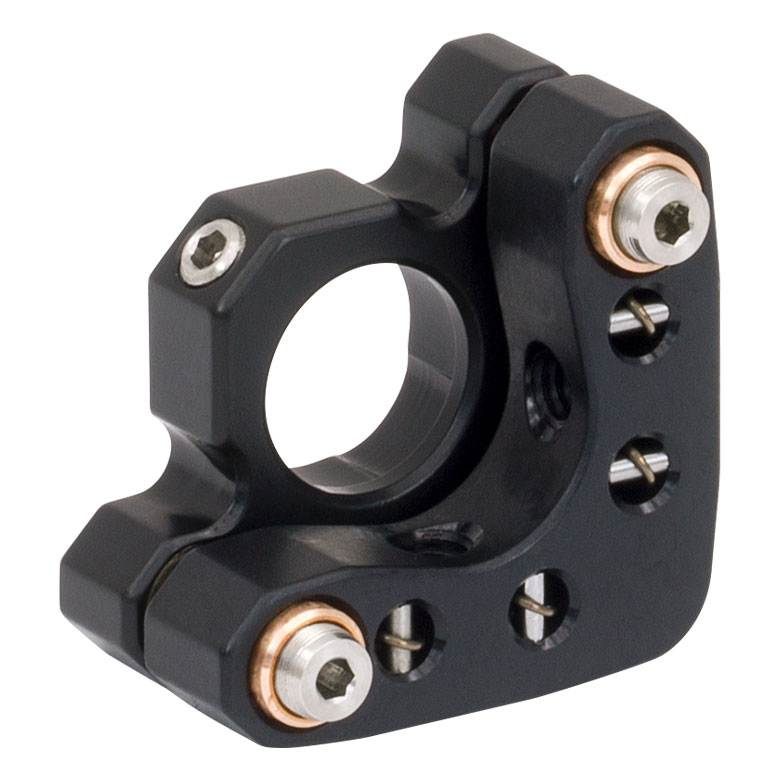

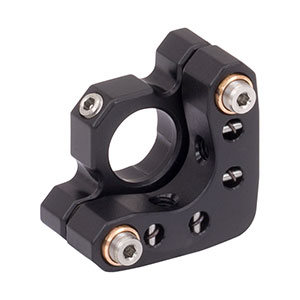

| KM05/M - Kinematic Mount for Ø12.7 mm Optics, Metric |
|
|
|
| Product Summary: |
Features- Mounts Ø12.7 mm Optics at Least 1.78 mm Thick
- Optic Held with a Setscrew
- Two Tapped M4 Mounting Holes Allow for Left- or Right-Handed Orientation
The highly stable, compact KM05/M mirror mount is ideal for OEM applications. This standard kinematic mount is mountable in left- or right-handed orientations, and secures the mirror at three points using a nylon-tipped locking screw and a double-bored mounting hole. The actuator utilizes a hex socket to minimize accidental movement in shared facilities. Specifications- Angular Range: ±4°
- Resolution: 13 mrad (0.75°) per rev via Two 3/16"-100 TPI Precision Adjusters
- Unpackaged Weight: 20.6 g
|
|
|
|
|
|
|
