| K6A1 - Prism Mount Accessory for K6X 6-Axis Mount, Imperial |
|
|
|
| Product Summary: |

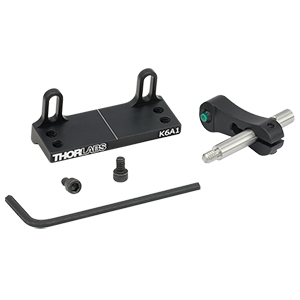

| The K6A1 is a 0.5" x 1.68" platform designed to be mounted on the rotation ring on the K6X six-axis kinematic mount and the CRM1 series (all versions) of 30 mm cage compatible rotation mounts. The platform is mounted using the included #4-40 screws (hex key included). The platform has an adjustment range of 1/4" so that the optic placed on the platform can be positioned on the axis of rotation. The platform has four #6-32 tapped holes on the corners that can be used to mount, among other things, the included PM3 prism clamping arm. |
|
|
|
|
|
|
