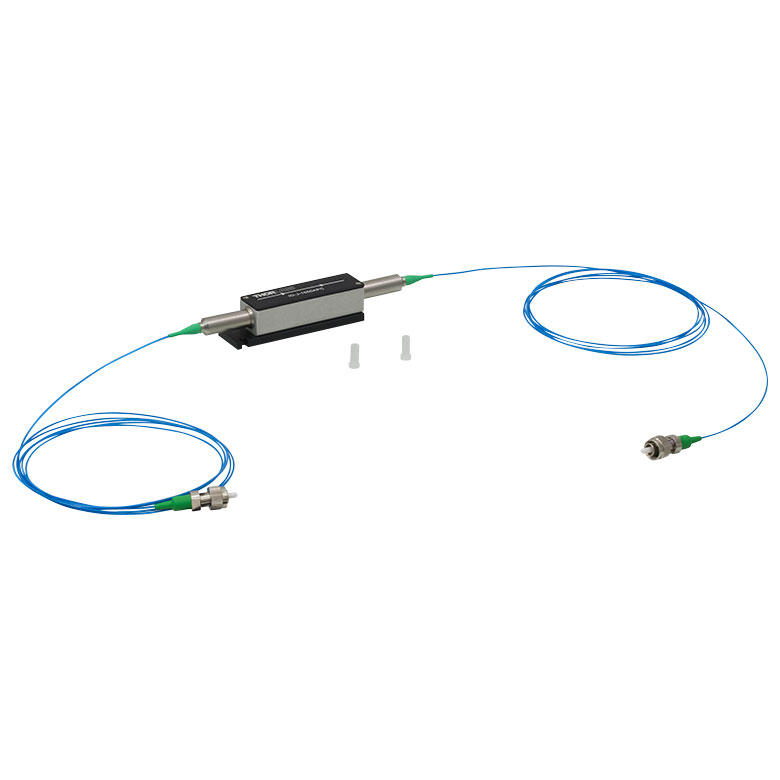

| IO-J-1550APC - Fiber Isolator, 1550 nm, PM, 5 W, FC/APC |
|
|
|
| Product Summary: |
Features
- Minimize Feedback into Optical Systems
- Wavelength Range: 1550 ± 20 nm
- Polarization Dependent
- Minimum 1 m Length of Fiber per side of Isolator
The IO-J-1550APC Polarization Dependent Fiber Isolator with FC/APC connectors, protects laser sources from back reflections and signals that can cause instabilities and damage to fiber coupled laser sources. An isolator is an optical device that allows light propagating in the forward direction to be transmitted, while absorbing or displacing light propagating in the reverse direction. This isolator is with a wavelength range of 1550 ± 20 nm. High power fiber isolators are built using a specialized fiber end face process to increase power handling capabilities. A minimum of 1 m of fiber is included on both sides of each fiber isolator.
Specifications
- Wavelength: 1550 ± 20 nm
- Max Power: 5 W (CW)
- Isolation: 32 - 38 dB
- Insertion Loss: 0.4 - 1.0 dB
- PDL: -
- Polarization Extinction Ratio: >20 dB
- Return Loss: >55 dB
- Fiber: PM 1500
|
|
|
|
|
