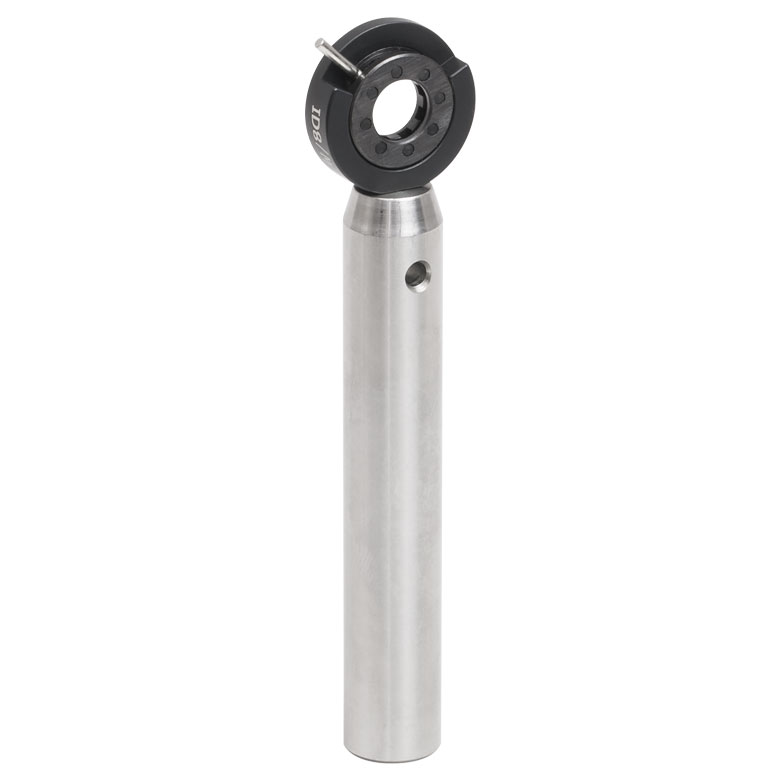

| ID8/M - Post-Mounted Iris Diaphragm, Ø8.0 mm Max Aperture |
|
|
|
| Product Summary: |
Features
- Continuously Variable
- Includes Housing and 75 mm Mounting Post
- Black Anodized Aluminum Housing Limits Reflection
- Custom Sizes Available
The ID8/M lever-actuated, continuously variable iris diaphragm is designed to provide smooth operation over many thousands of cycles. The individual steel leaves pivot within a black-anodized aluminum housing and are mounted on a 75 mm long stainless steel post.
Specifications
- Aperture: Ø0.7 to Ø8 mm
- # of Leaves: 8
- Outer Diameter: 21.4 mm
- Thickness: 6.0 mm
|
|
|
|
|
|
|
