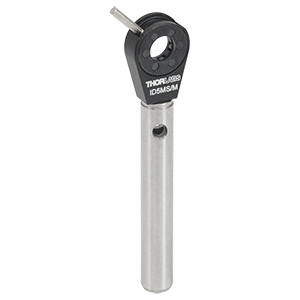

| ID5MS/M - Mini-Series Post-Mounted Iris, Ø5.0 mm Max Aperture (Ø6 mm Post, 38 mm Long) |
|
|
|
| Product Summary: |
Features
- Continuously Variable
- Includes Housing and Ø6 mm, 38 mm Mounting Post
- Black Anodized Aluminum Housing Limits Reflection
- Custom Sizes Available
The ID5MS/M lever-actuated, continuously variable iris diaphragm is designed to provide smooth operation over many thousands of cycles. The individual steel leaves pivot within a black-anodized aluminum housing and are mounted on a Ø6 mm, 38 mm long stainless steel post. This product is designed to be compatible with our Mini-Series components and is optimal for applications in which space is limited. The Mini-Series product line offers all of the essential building blocks for miniature and OEM-level optomechanical assemb
Specifications
- Aperture: Ø1.0 to Ø5 mm
- # of Leaves: 6
- Outer Diameter: 11.2 mm
- Thickness: 4.8 mm
- Unpackaged Weight: 9.98 g
|
|
|
|
|
|
|
