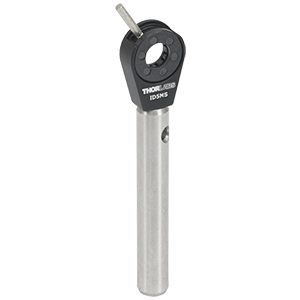

ID5MS - Mini-Series Post-Mounted Iris, Ø5.0 mm Max Aperture (Ø6 mm Post, 1.5" Long)

ID5MS - Mini-Series Post-Mounted Iris, Ø5.0 mm Max Aperture (Ø6 mm Post, 1.5in Long)

Zoom

ID5MS
Mini-Series Post-Mounted Iris, Ø5.0 mm Max Aperture (Ø6 mm Post, 1.5in Long)

Part Number:	ID5MS - Ask a technical question Ask a technical question.
Weight:	0.04 lbs / Each
Available / Ships:	Today
RoHS:	Exempt - Exempt6
Price:	$49.00
Add To Cart:	Qty :

ID5MS Support Documentation

Catalog Page:
Documents:
Auto CAD PDF
Auto CAD DXF
Solidworks
eDrawing
Step

Product Summary:

Features

Continuously Variable
Includes Housing and Ø6 mm, 1.5" Mounting Post
Black Anodized Aluminum Housing Limits Reflection
Custom Sizes Available

The ID5MS lever-actuated, continuously variable iris diaphragm is designed to provide smooth operation over many thousands of cycles. The individual steel leaves pivot within a black-anodized aluminum housing and are mounted on a Ø6 mm, 1.5" long stainless steel post. This product is designed to be compatible with our Mini-Series components and is optimal for applications in which space is limited. The Mini-Series product line offers all of the essential building blocks for miniature and OEM-level optomechanical assemb

Specifications

Aperture: Ø1.0 to Ø5 mm
# of Leaves: 6
Outer Diameter: 0.44"
Thickness: 0.19"
Unpackaged Weight: 10.2 g
