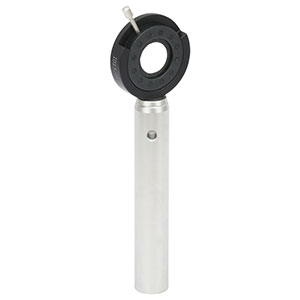

ID15/M - Post-Mounted Iris Diaphragm, Ø15.0 mm Max Aperture
ID15/M - Mounted Standard Iris, 15.0mm max. Aper.
Zoom
ID15/M
Mounted Standard Iris, 15.0mm max. Aper.
Part Number: ID15/M - Ask a technical question Ask a technical question.
Weight: 0.19 lbs / Each
Available / Ships: Today
RoHS: RoHS Compliant
Price: $43.00
Add To Cart:
Qty :
ID15/M Support Documentation

Catalog Page:
Documents:
Auto CAD PDF Auto CAD PDF
Auto CAD DXF Auto CAD DXF
Share this Product Share this Product Print Friendly Print Friendly Add favorite Watch for updates
Product Summary:
Features
  • Continuously Variable
  • Includes Housing and 75 mm Mounting Post
  • Black Anodized Aluminum Housing Limits Reflection
  • Custom Sizes Available

The ID15/M lever-actuated, continuously variable iris diaphragm is designed to provide smooth operation over many thousands of cycles. The individual steel leaves pivot within a black-anodized aluminum housing and are mounted on a 75 mm long stainless steel post.

Specifications
  • Aperture: Ø0.8 to Ø15 mm
  • # of Leaves: 12
  • Outer Diameter: 30.6 mm
  • Thickness: 6.5 mm
