Features
- Continuously Variable
- Includes Housing and 3" Mounting Post
- Black Anodized Aluminum Housing Limits Reflection
- Zero Minimum Aperture
- Custom Sizes Available

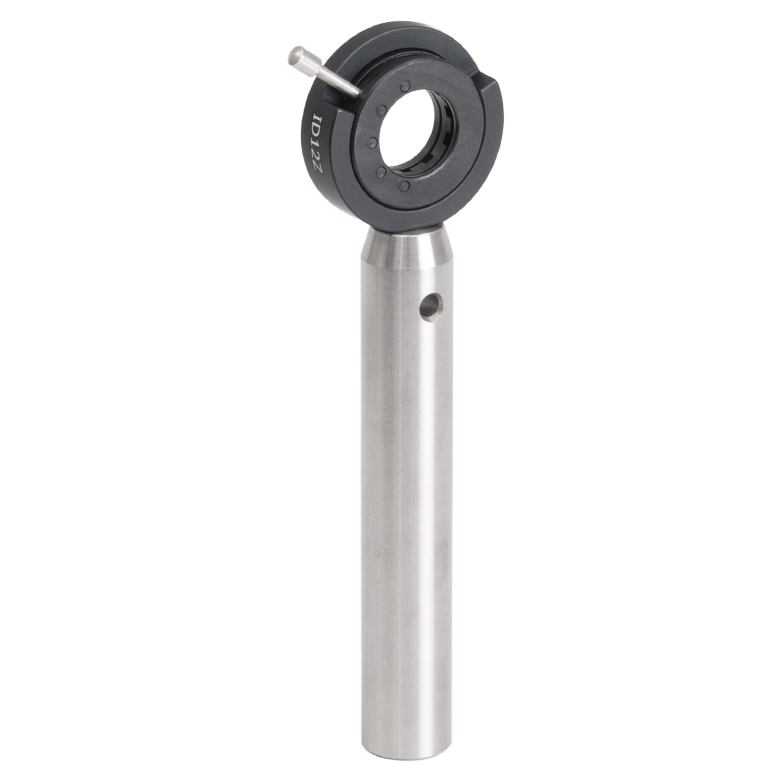

The ID12Z lever-actuated, continuously variable iris diaphragm is designed to provide smooth operation over many thousands of cycles. The individual steel leaves pivot within a black-anodized aluminum housing and are mounted on a 3" long stainless steel post. When the lever is in the closed position, the iris aperture is completely closed with a zero diameter aperture, unlike a single layer iris, which has a non-zero diameter aperture when the lever is in the closed position.
Specifications
- Aperture: 0 to Ø12 mm
- # of Leaves: 10
- Outer Diameter: 1.09"
- Thickness: 0.32"
- Unpackaged Weight: 84.8 g
|
