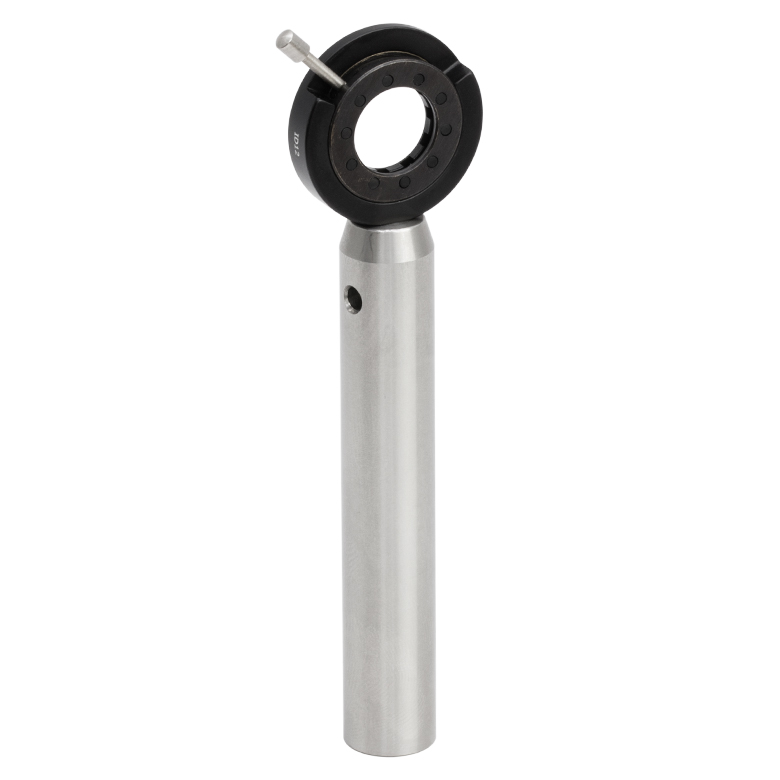

ID12 - Post-Mounted Iris Diaphragm, Ø12.0 mm Max Aperture
ID12 - Standard Iris, Ø12.0 mm max. Aperture
Zoom
ID12
Standard Iris, Ø12.0 mm max. Aperture
Part Number: ID12 - Ask a technical question Ask a technical question.
Weight: 0.19 lbs / Each
Available / Ships: Today
RoHS: RoHS Exempt Exempt - Exempt6
Price: $44.00
Add To Cart:
Qty :
ID12 Support Documentation

Catalog Page:
Documents:
Auto CAD PDF Auto CAD PDF
Auto CAD DXF Auto CAD DXF
Solidworks Solidworks
eDrawing eDrawing
Step Step
Share this Product Share this Product Print Friendly Print Friendly Add favorite Watch for updates
Product Summary:
Features
  • Continuously Variable
  • Includes Housing and 3" Mounting Post
  • Black Anodized Aluminum Housing Limits Reflection
  • Custom Sizes Available

The ID12 lever-actuated, continuously variable iris diaphragm is designed to provide smooth operation over many thousands of cycles. The individual steel leaves pivot within a black-anodized aluminum housing and are mounted on a 3" long stainless steel post.

Specifications
  • Aperture: Ø0.8 to Ø12 mm
  • # of Leaves: 10
  • Outer Diameter: 1.04"
  • Thickness: 0.23"
  • Unpackaged Weight: 77.6 g
