HNL100L - HeNe Laser, 632.8 nm, 10 mW, Polarized, 120 VAC

Zoom

HNL100L
HeNe Laser, 632.8 nm, 10 mW, Polarized, 120 VAC

Part Number:	HNL100L - Ask a technical question Ask a technical question.
Weight:	10.00 lbs / Each
Available / Ships:	Today
RoHS:
Price:	$1,894.40
Add To Cart:	Qty :

HNL100L Support Documentation

Manual:
Catalog Page:
Documents:
Auto CAD PDF
Auto CAD DXF
Solidworks
eDrawing
Step
Spec Sheet

Product Summary:

Features

632.8 nm Central Wavelength
Linearly Polarized Output Beam
Output Power of 10.0 mW
Includes Power Supply

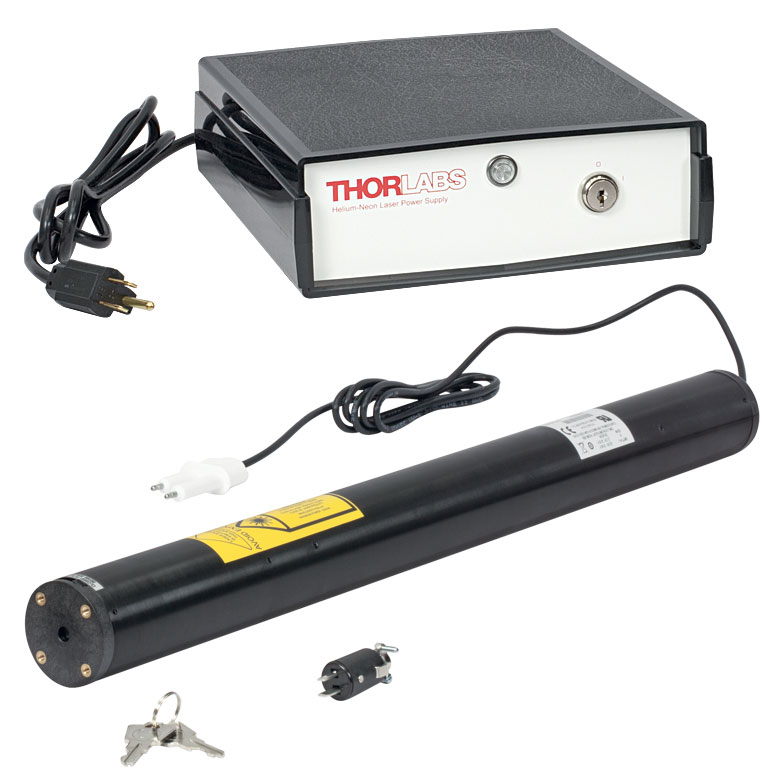

This cylindrical, 10.0 mW, red (632.8 nm) Helium-Neon laser feature a tube design that makes it easy to mount in nearly any optical system. The laser comes with a built-in interlock for safety. The laser output is linearly polarized (500:1) and the laser beam divergence is 1.2 mrad. A 120 VAC power supply is provided.

Specifications

Output Power (Measured at 633 nm): 10.0 mW
1/e² beam diameter: 0.68 mm
Divergence: 1.2 mrad
Polarization Ratio: 500:1
Longitudinal Mode Spacing: 320 MHz
Noise(RMS) (30 Hz to 10 MHz): 1.0%
Operating Voltage: 3100 VDC
Operating Current: 6.5 mA
