| HNL050L-EC - HeNe Laser, 632.8 nm, 5 mW, Polarized, 230 VAC |
|
|
|
| Product Summary: |
Features
- 632.8 nm Central Wavelength
- Linearly Polarized Output Beam
- Output Power of 5.0 mW
- Includes Power Supply

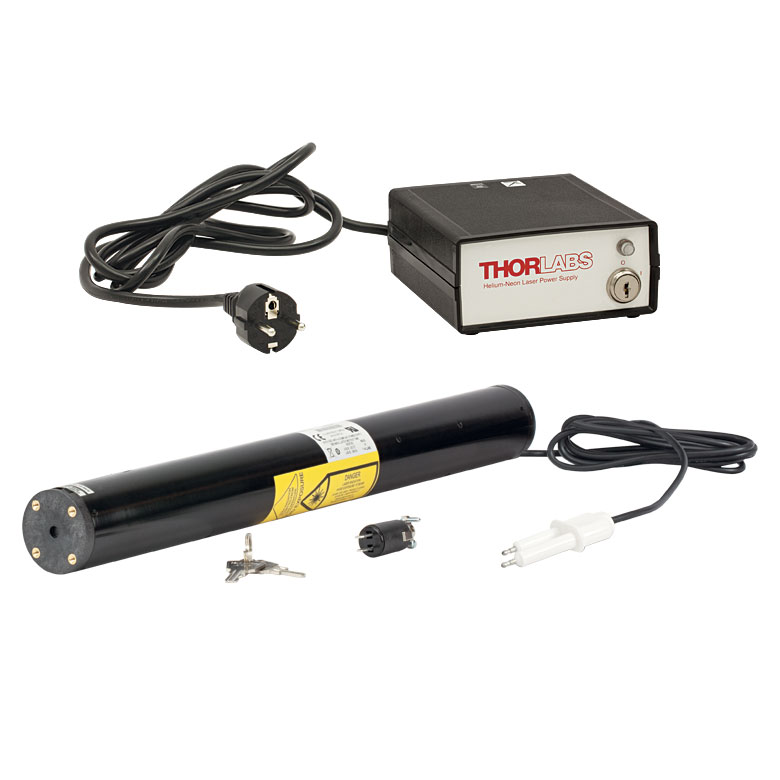

This cylindrical, 5.0 mW, red (632.8 nm) Helium-Neon laser feature a tube design that makes it easy to mount in nearly any optical system. The laser comes with a built-in interlock for safety. The laser output is linearly polarized (500:1) and the laser beam divergence is 1.0 mrad. A 230 VAC power supply is provided.
Specifications
- Output Power (Measured at 633 nm): 5.0 mW
- 1/e2 beam diameter: 0.81 mm
- Divergence: 1.0 mrad
- Polarization Ratio: 500:1
- Longitudinal Mode Spacing: 435 MHz
- Noise(RMS) (30 Hz to 10 MHz): 0.2%
- Operating Voltage: 2300 VDC
- Operating Current: 6.0 mA
|
|
|
|
|
|
|
