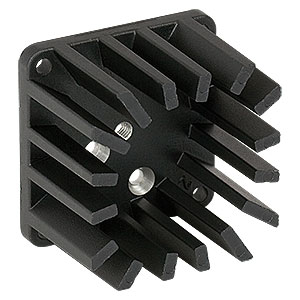

GHS003/M - Galvo Mount/Post Adapter Heatsink, Metric
GHS003/M - Galvo Mount/Post Adapter Heatsink, Metric
Zoom
GHS003/M
Galvo Mount/Post Adapter Heatsink, Metric
Part Number: GHS003/M - Ask a technical question Ask a technical question.
Weight: 0.09 lbs / Each
Available / Ships: Today
RoHS: RoHS Compliant
Price: $20.00
Add To Cart:
Qty :
GHS003/M Support Documentation

Manual: Operating Manual
Catalog Page:
Documents:
Auto CAD PDF Auto CAD PDF
Auto CAD DXF Auto CAD DXF
Solidworks Solidworks
eDrawing eDrawing
Step Step
Share this Product Share this Product Print Friendly Print Friendly Add favorite Watch for updates
Product Summary:
Features
  • Provides Additional Cooling
  • Attaches Directly to the 1D and 2D mirror mounts
  • Convenient Post Adapter to Thorlabs’ M4 x 0.7 UNC Threaded Posts

Typically, the galvo motors do not generate enough heat to need an additional heatsink. However, it may be necessary for applications that involve a rapidly changing drive signal waveform. Excess heat buildup will cause the galvo motor to fail or driver board thermal cut out to trip. The GHS003/M provides additional heat sinking for such conditions. The heat sink also serves as a post adapter, allowing the GVS001 and GVS002 galvo mirror assembly to be mounted on our M4 x 0.7 UNC threaded posts.

Specifications
  • Post Adapter Thread: M4 x 0.7
  • Heatsink Size (WxDxH): 46 mm x 46 mm x 38.1 mm
