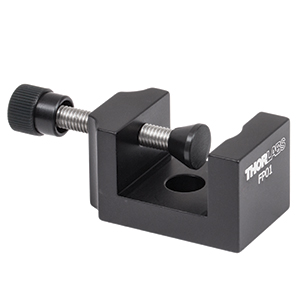

FP01 - General Purpose Plate Holder, Holds Plates Up to 0.58" Thick
FP01 - General Purpose Plate Holder, Holds Plates Up To 0.58in Thick
Zoom
FP01
General Purpose Plate Holder, Holds Plates Up To 0.58in Thick
Part Number: FP01 - Ask a technical question Ask a technical question.
Weight: 0.09 lbs / Each
Available / Ships: Today
RoHS: RoHS Compliant
Price: $42.00
Add To Cart:
Qty :
FP01 Support Documentation

Catalog Page:
Documents:
Auto CAD PDF Auto CAD PDF
Auto CAD DXF Auto CAD DXF
Solidworks Solidworks
eDrawing eDrawing
Step Step
Share this Product Share this Product Print Friendly Print Friendly Add favorite Watch for updates
Product Summary:
Features
  • Maximum Plate Thickness: 0.58" (14.6 mm)
  • Delrin Tip to Minimize Stress
  • Universal Design to use with Metric and Imperial Posts
  • Unpackaged Weight: 32.9 g

This general-purpose plate holder secures objects up to 0.58" thick. The clamping screw to secure the plate has a Delrin tip to prevent damage to the optic. A center-located 8-32 (M4) counterbore allows for fastening to our popular Ø1/2" posts in addition to other general mounting platforms.
