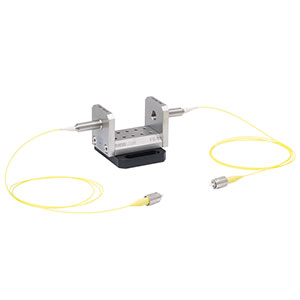

| FBC-780-FC - Fixed Fiber-to-Fiber Coupler, 780 nm, 780HP Fiber, FC/PC |
|
|
|
| Product Summary: |
|
Features
Wavelength: 780 nm
Bandwidth: ±15 nm
Return Loss: >55 dB
Fiber Length: 1 m
Power: 3 W CW (Max)
Based on Configurable FiberBench Platform
Thermally and Mechanically Stable
FC/PC or FC/APC Connectors
Thorlabs' high-performance FBC-780-FC Fixed fiber-to-fiber U-Bench allow easy access to the optical beam in a fiber-based application. It facilitates optical chopping and the insertion of plano/plano optical elements such as filters, polarizers, and attenuators as is fully compatible with Thorlabs’ wide offering of FiberBench components. The FBC-780-FC Fixed U-Bench is bidirectional with the input and output optics, and have minimized insertion and return losses.
Specifications
- Connectors: FC/PC
- Wavelength: 780 nm
- Bandwidth: ±15 nm
- Fiber Type: 780 HP
- Beam Diameter (Typical): 0.5 mm
- Insertion Loss: 0.85 ± 0.3 dB
|
|
|
|
|
|
|
