| FBC-1064-FC - Fixed Fiber-to-Fiber Coupler, 1064 nm, HI1060 Fiber, FC/PC |
|
|
|
| Product Summary: |
|
Features
Wavelength: 1064 nm
Bandwidth: ±15 nm
Return Loss: >55 dB
Fiber Length: 1 m
Power: 3 W CW (Max)
Based on Configurable FiberBench Platform
Thermally and Mechanically Stable
FC/PC or FC/APC Connectors

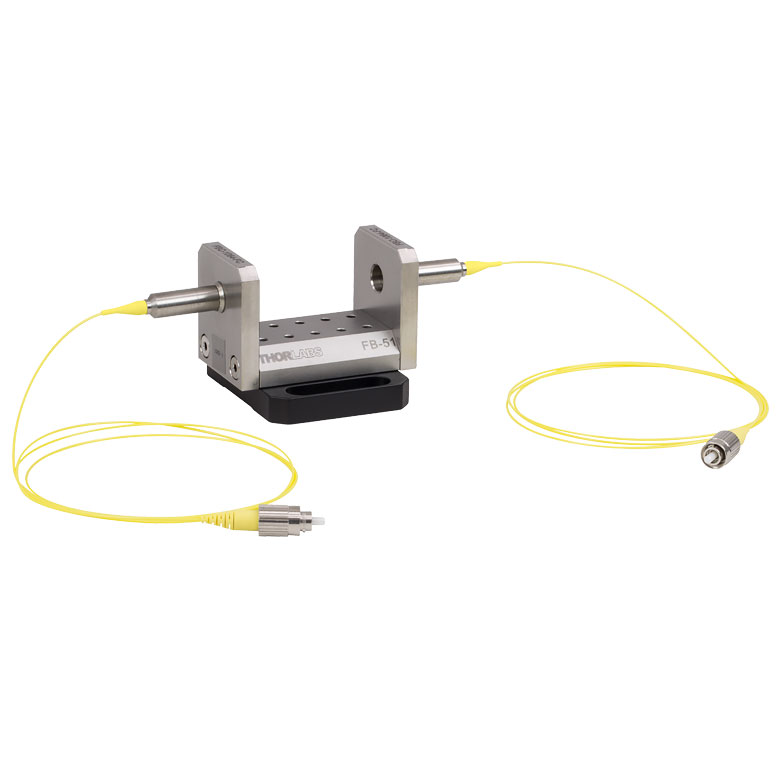

Thorlabs' high-performance FBC-1060-FC Fixed fiber-to-fiber U-Bench allow easy access to the optical beam in a fiber-based application. It facilitates optical chopping and the insertion of plano/plano optical elements such as filters, polarizers, and attenuators as is fully compatible with Thorlabs’ wide offering of FiberBench components. The FBC-1060-FC Fixed U-Bench is bidirectional with the input and output optics, and have minimized insertion and return losses.
Specifications
- Connectors: FC/PC
- Wavelength: 1064 nm
- Bandwidth: ±15 nm
- Fiber Type: 1060XP
- Beam Diameter (Typical): 2.0 mm
- Insertion Loss: 0.85 ± 0.3 dB
|
|
|
|
|
|
|
