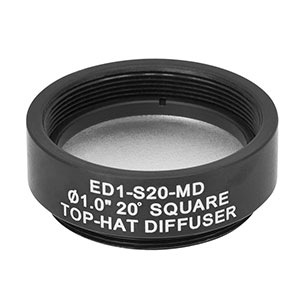

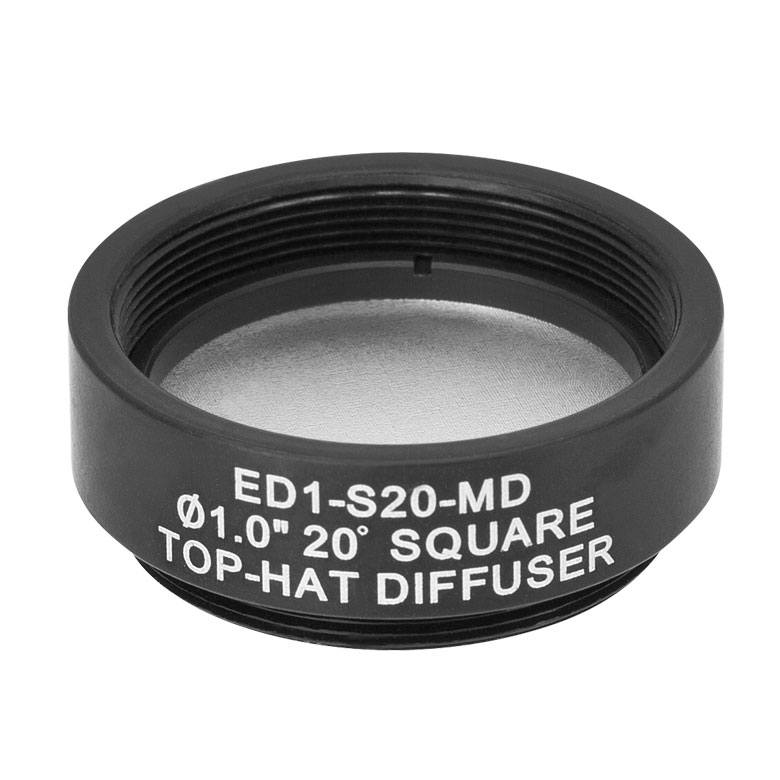

ED1-S20-MD - SM1-Threaded Mount, Ø1" 20º Square Engineered Diffuser

ED1-S20-MD - SM1-Threaded Mount, Ø1in 20º Square Engineered Diffuser

Zoom

ED1-S20-MD
SM1-Threaded Mount, Ø1in 20º Square Engineered Diffuser

Part Number:	ED1-S20-MD - Ask a technical question Ask a technical question.
Weight:	0.09 lbs / Each
Available / Ships:	Today
RoHS:
Price:	$129.50
Add To Cart:	Qty :

ED1-S20-MD Support Documentation

Catalog Page:
Documents:
Auto CAD PDF
Auto CAD DXF
Solidworks
eDrawing
Step

Product Summary:

Features

Ø1" Diffusers
Homogenize Input Illumination
Square Pattern Diffuser
High Transmission Efficiency
Achromatic Performance
SM1 Threaded Mount
Ideal for Low-Power Applications

Thorlabs and RPC Photonics are proud to offer the ED1-S20-MD Engineered Diffuser™, which has numerous advantages over traditional diffusers. Engineered Diffusers provide non-Gaussian intensity distributions in various patterns. This diffuser has a Square tophat pattern with 90% transmission efficiency and a divergence of. Other diffusers, such as ground glass diffusers, cannot offer this advanced light control. This mount provides quick identification and helps protect the diffuser from fingerprints and other contamination.

Specifications

Pattern: Square
Divergence:

20° (Flat Region)
27° (50% - Max)
36° (10% - Max)

Transmission Efficiency: 0.9
