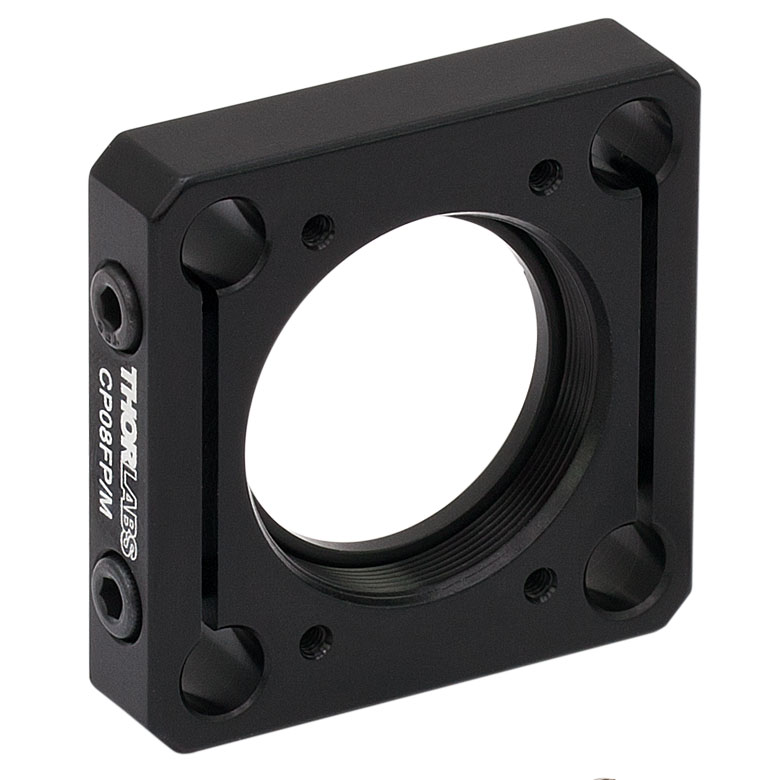

CP08FP/M - FiberPort and LaserPort Adapter for 30 mm Cage System, Enhanced Clamping, Metric

Zoom

CP08FP/M
FiberPort and LaserPort Adapter for 30 mm Cage System, Enhanced Clamping, Metric

Part Number:	CP08FP/M - Ask a technical question Ask a technical question.
Weight:	0.07 lbs / Each
Available / Ships:	Today
RoHS:
Price:	$23.00
Add To Cart:	Qty :

CP08FP/M Support Documentation

Catalog Page:
Documents:
Auto CAD PDF
Auto CAD DXF
Solidworks
eDrawing
Step

Product Summary:

Features

Integrates FiberPort Products into 30 mm Cage Systems
Allows Stable Fiber Launch Solutions for Cage System Applications
Directly Compatible with Our Ø1" Lens Tubes
Mounting Screws for FiberPort are Included
M4 Tap for Post Mounting

The CP08FP/M is designed to center a FiberPort inside a 30 mm cage system. It features enhanced cage-rod flexure clamps, which are designed to securely hold the cage plate in position for greater stability of the FiberPort system. ER rods can be inserted into the four holes provided in the adapter. In addition, the four 2-56 stainless steel socket head screws necessary to secure a FiberPort to the adapter are included, each of which is 1/4" long. The cage plate has internal SM1 (1.035"-40) threading, enabling it to be used with our extensive line of lens tubes.
