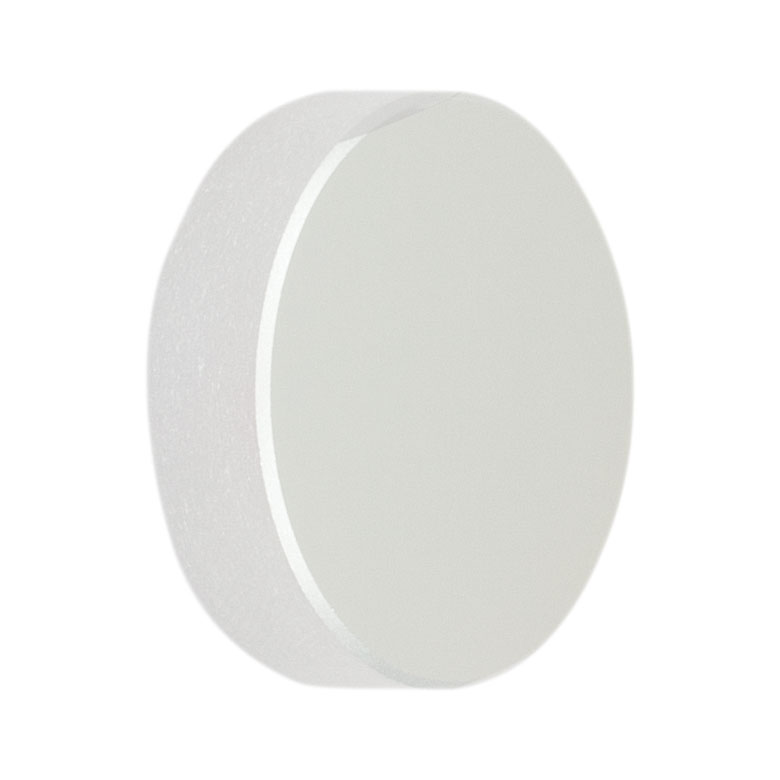

| CM254-050-G01 - Ø1" Aluminum-Coated Concave Mirror, f=50.0 mm |
|
|
|
| Product Summary: |
Features
- No Chromatic Aberrations Unlike with Lens-Based Systems
- >90% Average Reflectivity: 450 nm - 2 µm
- >95% Average Reflectivity: 2 - 20 µm
- Damage Threshold: 0.3 J/cm2 at 1064 nm, 10 ns, 10 Hz, Ø1.000 mm
This spherical concave mirror consists of a protected aluminum coating on top of an N-BK7 substrate and is designed for use in the visible and near infrared spectral range. With λ/4 surface accuracy at 633 nm, this mirrors will provide excellent image quality. Please note that f = R/2 where R is the radius of curvature of the mirror.
Specifications
- Substrate Material: N-BK7
- Surface Irregularity: λ/4 @ 633 nm
- Clear Aperture: >90% of Diameter
- Thickness Tolerance: ±0.2 mm
- Surface Quality: 40-20 Scratch-Dig
- Diameter Tolerance: +0.0 mm / -0.2 mm
- Chamfer (Typical): 0.25 mm @ 45°
- Backside Surface: Fine Ground (Not Polished)
- Diameter: 25.4 mm
- Focal Length: 50 mm
- Coating: Aluminum
|
|
|
|
|
|
|
