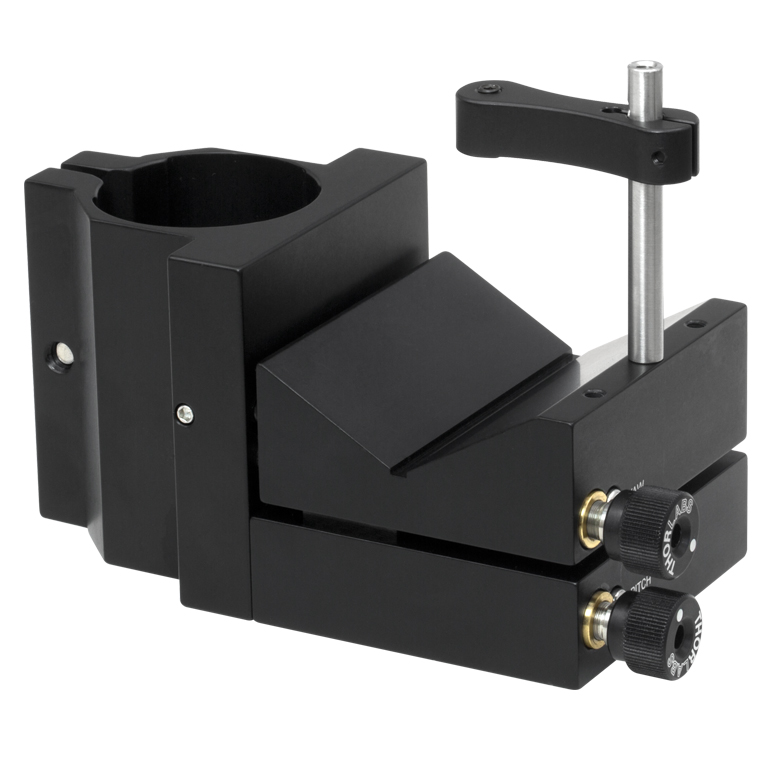

C1503 - Kinematic V-Clamp Mount, One PM4 Clamping Arm Included

Zoom

C1503
Kinematic V-Clamp Mount, One PM4 Clamping Arm Included

Part Number:	C1503 - Ask a technical question Ask a technical question.
Weight:	1.46 lbs / Each
Available / Ships:	Today
RoHS:	Exempt - Exempt6
Price:	$242.00
Add To Cart:	Qty :

C1503 Support Documentation

Catalog Page:
Documents:
Auto CAD PDF
Auto CAD DXF
Solidworks
eDrawing
Step

Product Summary:

Features

±3° Pitch & Yaw Adjustment for Easy Beam Pointing
Kinematic Design Provides Stability
Ø2" Maximum/Ø0.56" Minimum Clamping Diameter
Compatible with Standard Ø1.5" Mounting Posts

The C1503 is a Kinematic V-Clamp Mount that provides two axes of precision angular adjustment. This clamp is ideal for mounting a HeNe laser or other large cylindrical objects. The angular adjustments provide control of the beam pointing, while the vertical height can be set by moving the unit along the support post (P-series Post). A series of hardened chromium steel balls and ball seats form a true kinematic mechanism that works with gravity and heavy duty springs to provide long-term stability. Vertical positioning is achieved by sliding the rear clamping mechanism along the length of the Ø1.5" post. The clamping mechanism is actuated with a 3/16" Allen key or balldriver.

Specifications

Unpackaged Weight: 1.73 kg
