Features

• Quick-Connect Cage Clamp
• Easy Drop-In/Drop-Out of Cage Systems
• Single Locking Screw Allows One-Handed Operation
• Compatible with Ø25 mm RS Series Posts
• Unpackaged Weight: 111 g

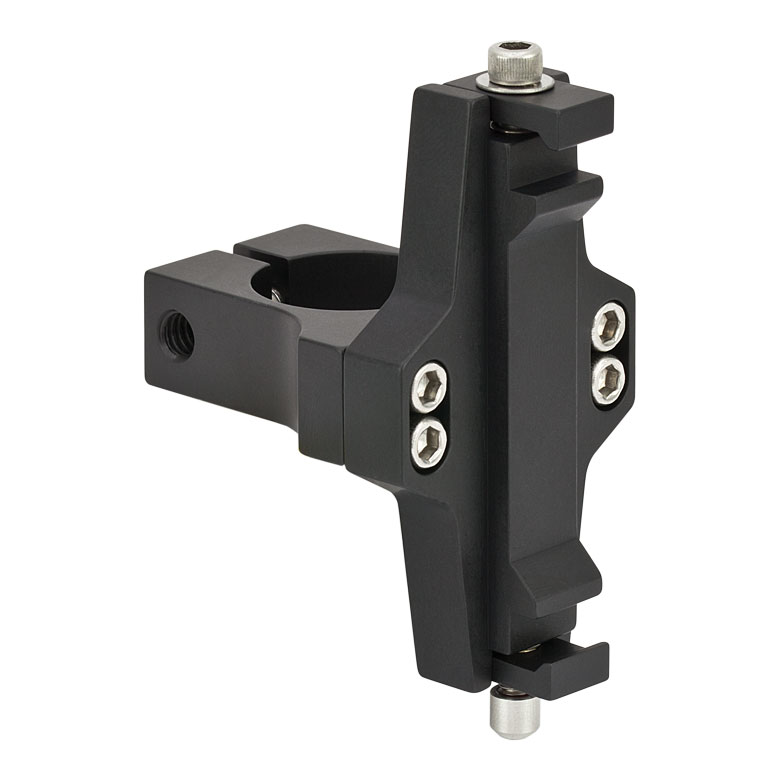

The C1060/M relief cut clamp for Ø25 mm posts is designed to support 60 mm cage systems. Two parallel cage rods can be placed in the clamp and with a single screw they can be locked in place. In this way, complete sections of cage systems can be supported by a single post. The clamp itself has a precision Ø1" hole bored through it with a relief cut. An M6 cap screw can be tightened to compress the gap created by the relief cut, which results in the C10 Series being secured to the Ø25 mm post with a great deal of force.
