Features

• Designed to Mount Ø1" (Ø25.4 mm), 3/16"-Thick (4.8 mm) Pellicle Beamsplitters
• Post-Mountable Design Centers Pellicle About Axis of Rotation
• Two 2-56 Cap Screws Provided for Mounting Pellicle

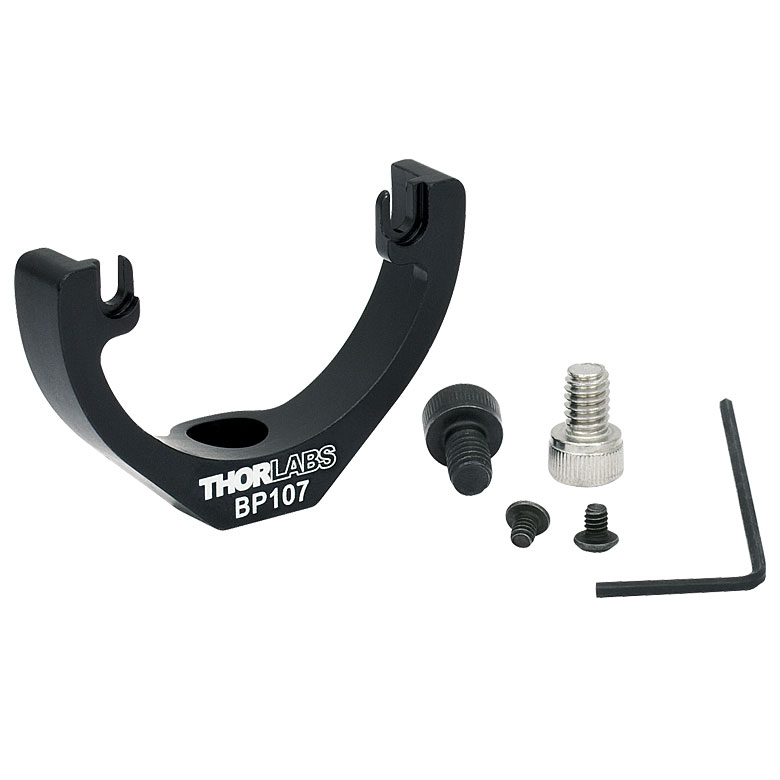

This fixed pellicle beamsplitter mount is a compact and unobstrusive solution when kinematic tip and tilt of the pellicle are not required. The post-mountable design features an 8-32 (M4) counterbore directly under the optical surface of the pellicle in order to provide a gimbal-like motion when manually rotating an assembly in a post holder.

Thorlabs' Pellicle Beamsplitters are conveniently "dropped into" the mount via slotted supports. This feature helps prevent damage to the extremly delicate pellicle membrane as a result of excess handling. Secure the pellicle's position using the two 2-56 cap screws included with the mount.
