• Additional L-Band Power
• High Power (30 mW) Version of Our Most Popular Model
• Easy Operation

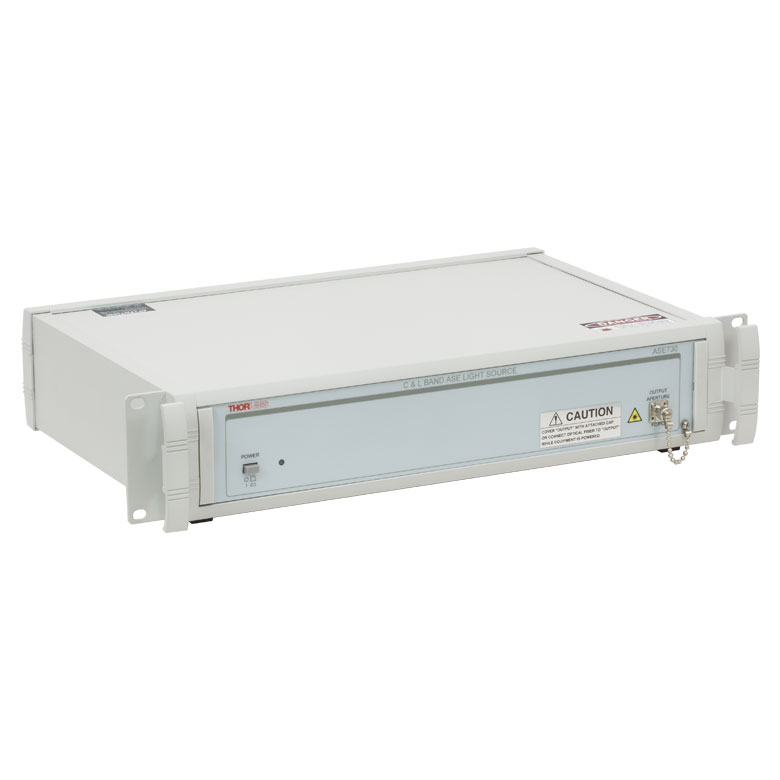

The ASE730 White Light Test Source delivers more than +15 dBm of output power across the C&L Band wavelength. The ASE730 is a low noise, high power C&L Band test source. This test source is designed to perform well beyond the industry standard. This ASE Source takes advantage of Erbium-doped fluoride fiber, pumped with a single 1480 nm laser diode, to produce 30 mW (15 dBm) of broadband "white light". This rare-earth fiber design allows for a higher degree of power and wavelength stability than conventional silica fibers with multiple pumping lasers. The output fiber is a standard SMF-28 silica fiber.

• Total Output Power: >+15 dBm(30 mW)
• Spectral Power Density (Typical): >-18 dBm/nm at 1530 nm; >-11 dBm/nm at 1540-1600 nm; >-18 dBm/nm at 1610 nm
• Output Power Stability: 0.001 dB (15 min. After 1 h Warmup); 0.005 dB Maximum
• Wavelength Range: 1530 nm - 1610 nm
• Output Connector: FC/PC
• Output Fiber: SMF-28
• Size (mm): 88(H) x 230(W) x 352(D); 19" Rack-Mount Compatible
• Operation Temperature: 0 to 40 °C
• Storage Temperature: 10 to 45 °C
• Warranty: 2 years
