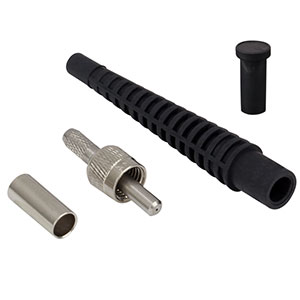

10440A - SMA905 Multimode Connector, Ø440 µm Bore, SS Ferrule
10440A - SMA905 Multimode Connector, Ø440 µm Bore, SS Ferrule
Zoom
10440A
SMA905 Multimode Connector, Ø440 µm Bore, SS Ferrule
Part Number: 10440A - Ask a technical question Ask a technical question.
Weight: 0.01 lbs / Each
Available / Ships: Today
RoHS: RoHS Compliant
Price: $9.65
Add To Cart:
Qty :
10440A Support Documentation

Catalog Page:
Documents:
Auto CAD PDF Auto CAD PDF
Auto CAD DXF Auto CAD DXF
Solidworks Solidworks
eDrawing eDrawing
Step Step
Share this Product Share this Product Print Friendly Print Friendly Add favorite Watch for updates
Product Summary:

This SMA style connector is most commonly used with multimode fibers. The ferrule design on the SMA connector makes it an ideal choice for large core fibers. This connector package includes a fiber connector cap.

Specifications
  • Style: SMA905
  • Fiber Cladding Diameter: 430 µm
  • Ferrule Hole Size Min ID / Max ID: 440 µm / 455 µm
  • Ferrule: Stainless Steel
  • Boot: Ø3 mm
Related Items for 10440A:
