General Specifications
Design Wavelengths	486.1 nm, 587.6 nm, and 656.3 nm (Finite Conj. Ratio) 633 nm (Infinite Conj. Ratio)
Clear Aperture	90% of Diameter
Diameter Tolerance	+0.00/-0.10 mm
Focal Length Tolerance	±1%
R_avg (400 - 700 nm)	<0.5%
Surface Quality	40-20 Scratch-Dig
Centration	<3 arcmin
Damage Threshold	30 MW/cm² (532 nm, 10 ns pulse, 10 Hz, Ø0.566 mm)
Operating Temperature	-40 to 85 ^oC

Features

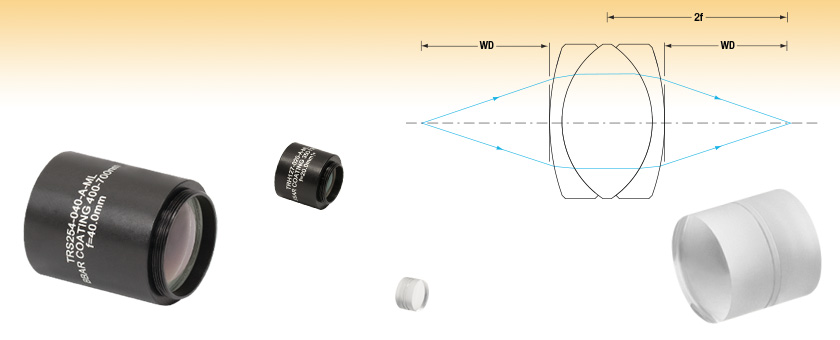

Ø1/4", Ø1/2", or Ø1" Unmounted Achromatic Triplets
Steinhel Design for Finite Conjugate Ratios
Hastings Design for Infinite Conjugate Ratios
AR Coated for the 400 - 700 nm Range (R_avg < 0.5%)
Excellent Aberration Compensation

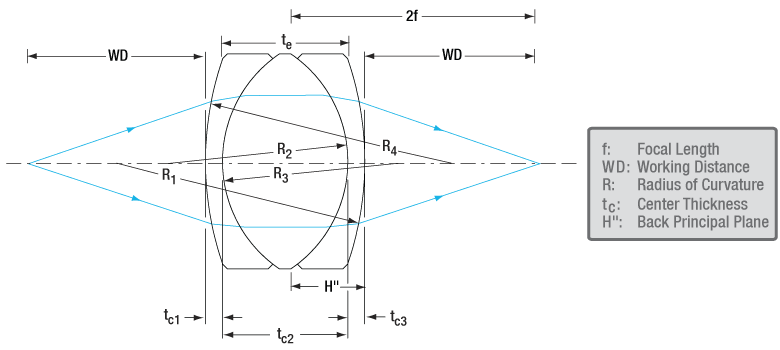

An achromatic triplet is the simplest lens that corrects all primary chromatic aberrations. Thorlabs' Steinhel achromatic triplets are designed to provide a finite conjugate ratio and 1:1 imaging. In contrast, our Hastings triplets provide an infinite conjugate ratio and are useful for focusing collimated beams and for magnification. These triplets consist of a low index center element cemented between two identical high index outer elements (see Specs tab) and feature good on-axis and off-axis performance. Mounted versions are also available.

The shaded area in the reflectivity plot to the right indicates the region over which the antireflection coating is optimized.

Shown below is a theoretical graph of the percent reflectivity of the -A AR coating as a function of wavelength. The average reflectivity in the 400 - 700 nm range is < 0.5%. The shading indicates the region for which the AR coating is optimized.

Click to Enlarge

Click here to download the data for these plots.

Please Give Us Your Feedback

Email		Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.

Please type the following key into the field to submit this form:

Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.

Would this product be useful to you? Little Use 1 2 3 4Very Useful

Enter Comments Below:

Characters remaining 8000

Posted Comments:
No Comments Posted

Click on any phrase below to search our site using our new Search Engine:

½ optic 1 2 inch lens 1 2 inch optic 1 2 lens 1 2 optic 1 inch lens 1 inch optic 1 lens 1 optic 1 to 1 triplet 1" lens 1" optic 1.4" lens 1/2" lens 1/2" optic 1/4" lens 1/4" optic 1/4" triplet 1:1 triplet 12.7 mm lens 12.7 mm optic 12.7mm lens 12.7mm optic 24.5mm optic 25.4 mm optic 25.4mm lens 25.4mm optic 6.35mm lens 6.35mm optic Achromatic achromatic lens achromatic lenses achromatic triplet lenses Achromatic Triplets Achromats collimating triplet finite triplet hastings achromatic triplet hastings triplet imaging triplet infinite triplet loupe magnifier magnifier triplet magnifying magnifying triplet mounted achromatic lenses steinhel 1:1 steinhel achromatic triplet steinhel triplet Unmounted Achromatic Triplets Unmounted Achromats

Item #

Diameter
(mm)

f
(mm)

WD
(mm)

R₁^a
(mm)

R₂^b
(mm)

t_c1^c
(mm)

t_c2
(mm)

t_e
(mm)

Materials
(Outer/Inner)

Refractive Index^d
(Outer/Inner)

Reference
Drawing

TRS064-010-A

6.35

10.2

18.8

9.3

3.8

0.5

3.7

N-SF8/N-BAF52

1.68/1.61

TRS127-020-A

12.7

20.4

37.3

18.3

7.4

1.0

8.0

7.8

N-SF8/N-BAF52

1.68/1.61

TRS254-040-A

25.4

40.6

69.3

28.8

13.3

5.2

19.8

24.4

N-F2/N-K5

1.62/1.52

Item #

Diameter
(mm)

f
(mm)

WD
(mm)

R₁^a
(mm)

R₂^b
(mm)

t_c1^c
(mm)

t_c2
(mm)

t_e
(mm)

Materials
(Outer/Inner)

Refractive Index^d
(Outer/Inner)

Reference
Drawing

TRH064-010-A

6.35

10.2

7.8

7.4

3.5

0.5

5.0

4.7

N-F2/N-K5

1.62/1.52

TRH127-020-A

12.7

20.0

15.9

14.9

8.3

2.0

8.0

9.3

N-SF5/N-K5

1.67/1.52

TRH254-040-A

25.4

40.0

32.3

30.2

14.2

2.5

17.0

16.5

N-F2/N-K5

1.62/1.52
