Thorlabs’ Single Mode (SM) Optic Circulators are non-reciprocating, one directional, three-port devices that are used in a wide range of optical setups and for numerous applications. Our SM optical circulators have a center wavelength of 1064, 1310 (O-Band), or 1550 nm (C-Band). Additionally these SM optical circulators have the option of bare fiber, FC/PC connectors, or FC/APC connectors. Thorlabs also offers Polarization-Maintaining (PM) Fiber Optical Circulators.
Circulator used to drop an optical channel from a DWDM system using a Fiber Bragg Grating.
An optical circulator is analogous to an electronic circulator and both perform similar functions. An optical circulator is a three-port device that allows light to travel in only one direction. A signal entering to Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1. Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction.
Because of its high isolation and low insertion loss, optical circulators are widely used in advanced communication systems as add-drop multiplexers, bi-directional pumps, and chromatic dispersion compensation devices.
The example to the right depicts the use of a circulator to drop an optical channel from a DWDM system using a Fiber Bragg Grating (FBG). The input DWDM channels are coupled into Port 1 of the device with a FBG device connected to Port 2. The single wavelength reflected from the FBG then reenters the circulator in port 2 and is routed accordingly to Port 3. The remaining signals pass through the FBG and exit on the top fiber.
Circulators can also be used to send optical signal in two directions down a single fiber. A circulator is located at both ends of the fiber. Each circulator functions to add a signal in one direction while removing the signal in the other. See the example below.
For custom wavelength and connector options please contact Technical Support.
Item #
CIR-1310-50-APC
CIR1064d
CIR1310d
6015-3d
Optical Specifications
WavelengthRange
1280 - 1400 nm
1050 - 1070 nm
1280 - 1340 nm
1525 – 1610 nm
Insertion Loss
1.6 Max a, b
<2.1 dB
<0.8 dB
0.8 dB Typ, 1.0 dB Max
Isolation c
28 dB b
≥20 dB
≥40 dB
>40 dB Min
Directivity (1-3)
50 dB Min
>45 dB
>50 dB
>50dB
Polarization Dependent Loss
0.2 dB Max
≤0.2 dB
≤0.15 dB
≤0.1 dB
Polarization Mode Dispersion
0.05 ps Min
≤0.05 ps
≤0.1 ps
≤0.05 ps
Chromatic Dispersion
3 ps/nm Max
-
-
-
Return Loss
45 dB Min b
≥50 dB
≥50 dB
≥50 dB
Max Optical Power
500 mW
300 mW
300 mW
500 mW
Mechanical Specifications
Package Dimensions
Ø 5.5 mm x 38 mm
34 × 8.4 × 8.4 mm
Ø5.5 × 50 mm
Ø 5.5 mm x 50.5 mm
Fiber
SMF-28e, 900 µm Loose Tube
HI1060 900 µm Loose Tube
SMF-28e, 900 µm Loose Tube
SMF-28e, 900 µm Loose Tube
Length
1.0 ± 0.1 m
1.0 m
1.0 m
1.0 m
Operating Temp
0 to 70 °C
0 to 70 °C
0 to 70 °C
0 to 70 °C
Storage Temp
-40 to 85 °C
-40 to 85 °C
-40 to 85 °C
-40 to 85 °C
Operating Relative Humidity
5% - 95%
5% - 60%
5% - 60%
5% - 60%
Storage Relative Humidity
5% - 95%
5% - 85%
5% - 85%
5% - 85%
a Includes Wavelength, Temp, Polarization Dependence b Includes Connector c Internal isolation, assumes connectorized fiber is well-matched d Specs based on no connector
Loading...
Posted Comments:
Poster: sharrell
Posted Date: 2012-07-19 12:24:00.0
Response from Sean at Thorlabs: Thank you for pointing out the inconsistency with our circulator diagrams. We are currently reviewing these diagrams and are working to recreate them properly. If you have any questions regarding the operation of our circulators, or if you wish a notification of when this update is complete, please contact us at techsupport@thorlabs.com.
Poster:
Posted Date: 2012-07-17 18:08:46.0
Hi, you might want to change your cartoons to reflect the actual circulator you sell -- it's a little confusing since in the cartoon the light is directed 90 deg twice, while in the actual circulator, the light goes straight through and then is directed 90 deg just once. Small thing; it got me, though! Went back to the PDF and realized what was going on. Maybe can save someone else the trouble. Best, Luke
Poster:
Posted Date: 2011-12-09 13:41:52.0
A response from Tyler at Thorlabs: You are correct, each time the light enters the circulator it experiences the insertion loss. Thank you for using our online feedback forum.
Poster: bmills
Posted Date: 2011-12-08 16:46:08.0
Can you explain the insertion loss numbers? Do you lose 1.3 to 1.9dB going from port 1 to port 2, and then lose another 1.3 to 1.9dB going from port 2 to port 3?
Poster: klee
Posted Date: 2009-11-12 10:36:49.0
A response from Ken at Thorlabs to pratheep.r29: We will check if this is possible. Meanwhile, please send your full contact information to techsupport@thorlabs.com so we can send you a quotation if this is indeed possible.
Poster: pratheep.r29
Posted Date: 2009-11-12 01:51:08.0
I need a 3-port custom made circulator with port1 to port2 having a wide spectral range i.e. 900nm~1600nm, port2 to port3 having a spectral range 900nm~1100nm.
Poster: klee
Posted Date: 2009-10-13 14:08:00.0
A response from Ken at Thorlabs to kevin.h.wilson: Which circulator do you have? Only the CIR-1310-50-APC is designed for 1310nm. The 6015-3 are for 1550nm while the OC-L-xxxx are for 1064nm or 1550nm.
The yellow/orange arrows just “help” explain the path the light takes. The coil in the middle is just a fiber.
Poster: kevin.h.wilson
Posted Date: 2009-10-13 09:20:47.0
Two things.
First have you or any of your customers ever used circulators on a standard 1gb-Ethernet network at 1310? I have tried the suggeted configuration and get intermittant behavior.
Second, in figure 2 of the circulators page I understand the red and blue arrows, but what are the yellow/orange arrows representing? Is that coil in the middle a sensor?
Click on any phrase below to search our site using our new Search Engine:
Single Mode Fiber With Bare Fiber, FC/PC Connectors, or FC/APC Connectors
Max Output Power of 300 mW
Thorlabs' 1064 nm SM Fiber Optic Circulators are available with bare fiber, FC/PC connectors, or FC/APC connectors. The FC/PC and FC/APC connectors have a 2 mm narrow key.
Single Mode Fiber With Bare Fiber, FC/PC Connectors, or FC/APC Connectors
Thorlabs' 1310 nm SM Fiber Optic Circulators are available with bare fiber, FC/PC connectors, or FC/APC connectors. The FC/PC and FC/APC connectors have a 2 mm narrow key. Our CIR1310, CIR1310-FC and CIR1310-APC circulators have a max output power of 300 mW. The CIR-1310-50-APC broadband fiber optic circulator is specifically designed for OCT applications. This circulator boasts a broader wavelength range than our standard 1310 nm SM fiber optical circulator and has a maximum output power of 500 mW.
Single Mode Fiber With Bare Fiber, FC/PC Connectors, or FC/APC Connectors
Max Output Power of 500 mW

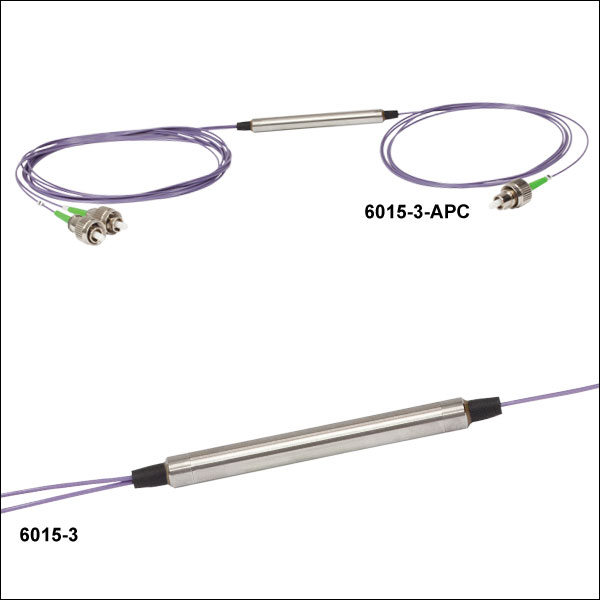

Thorlabs' 1550 nm SM Fiber Optic Circulators are available with bare fiber, FC/PC connectors, or FC/APC connectors. The FC/PC and FC/APC connectors have a 2 mm narrow key.
