FiberBench Beamsplitter Modules


Related Items

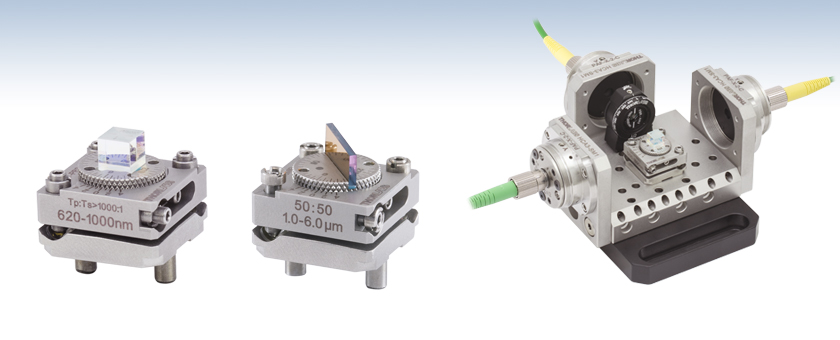

FiberBench Beamsplitter Modules

Download a FiberBench Assembly File

Features

  • Beamsplitters Designed for 780 nm, 1064 nm, or 1550 nm
  • Compatible with FiberBenches
  • Mounted on Flexure Base to Provide Easy Tip, Tilt, and Rotation
  • Separated by Mounting Orientations (Vertical/Horizontal) and Handedness (Right/Left)
  • Please Contact FiberBench@Thorlabs.com for Special Wavelengths or Custom Requests

For applications that require a beam to be split or reflected, Thorlabs offers polarizing cubes and beamsplitter plates mounted on flexure bases. The base allows for tip, tilt, and rotational adjustment for precision beam alignment and steering control. The modules are mounted to provide easy access to the adjustment mechanism without interfering with the beam path. Care should be taken to choose a mount that directs the beam to the correct port's path so that the adjusting screws are in a convenient position for the required setup. Please see the Pin Configuration Tab for help in selecting between vertical and horizonal mounting orientations, as well as left and right handed orientations.

FiberBench Accesories
FiberPortsOptic MountsAlignment ToolsPolarizers
Beamsplitter ModulesMirror ModulesRotating Wave PlatesFiberBenches

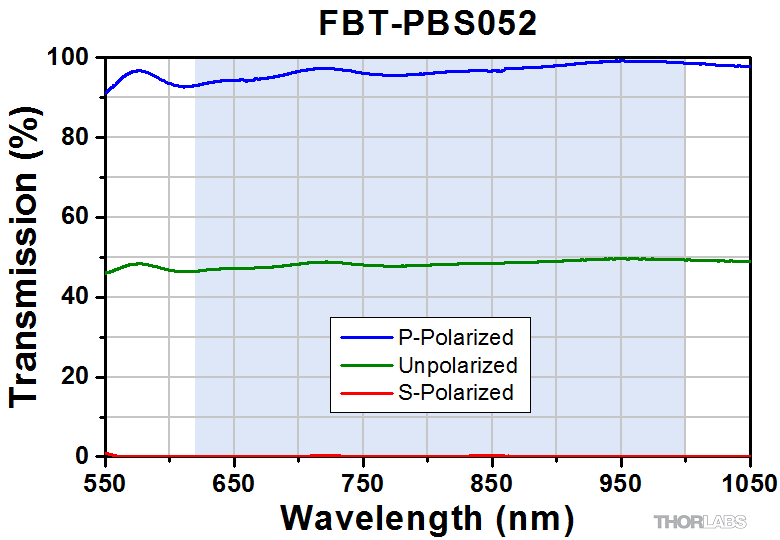

Polarizing Beamsplitter Modules (PSCLBs)

Item #AR Coating RangeDamage Threshold
PSCLB-xx-780620 - 1000 nm2 J/cm2 at 810 nm, 10 ns, 10 Hz, Ø0.166 mm
PSCLB-xx-1064900 - 1300 nm2 J/cm2 at 1064 nm, 10 ns, 10 Hz, Ø0.484 mm
PSCLB-xx-15501200 - 1600 nm5 J/cm2 at 1542 nm, 10 ns, 10 Hz, Ø0.181 mm
Polarizing Beamsplitting Cube
Specifications
AR Coating ReflectionRavg <0.5% at 0° AOI
Dimensional Tolerance±0.2 mm
Center Thickness Tolerance±0.4 mm
MaterialSF2
Extinction RatioTp:Ts >1,000:1
Transmission Efficiency*Tp >90%
Reflection Efficiency*Rs >99.5%
Transmitted Beam Deviation<5 arcmin
Reflected Beam Deviation90° ± 5 arcmin
Clear Aperture>70% of Dimension
Surface Flatnessλ/10 at 633 nm
Wavefront Distortion<λ/4 at 633 nm
Surface Quality40-20 (Scratch-Dig)

*Transmission and reflection data is based on that of the beamsplitter coating and does not account for the BBAR surface coating.

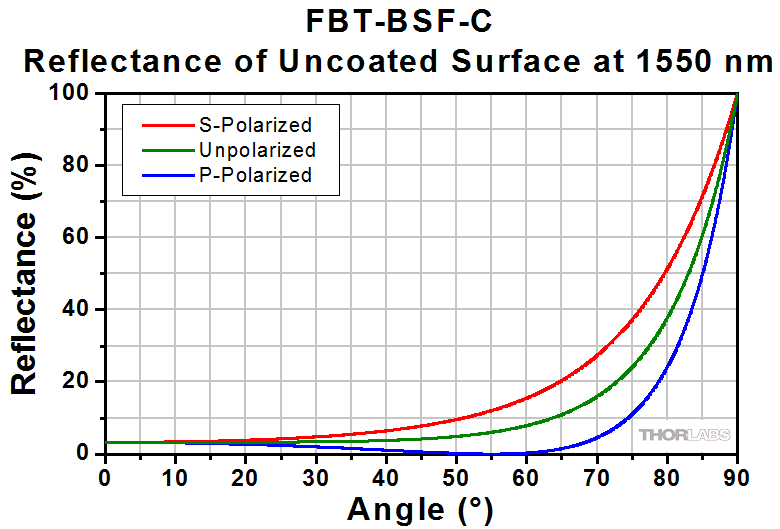

Non-Polarizing Beamsplitter Modules (MSBs)

Polarizing Beamsplitting Cube
SpecificationsMSB-xx-xxx-50/50MSB-xx-xxx-4/96
Transmission Efficiency50%96%
Reflection Efficiency50%4%
Beam Displacement~ 0.5 mm
Clear Aperture Ø1.5 mm (80% of Length and Width)
Transmitted Wavefront Distortion≤λ/4
Plate Thickness1.0 mm
Surface Quality10-5 Scratch-Dig

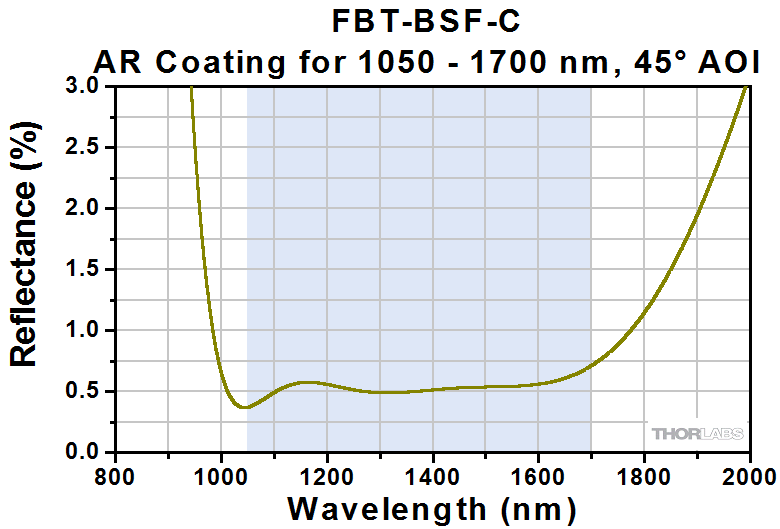

Item #AR Coating Range
MSB-xx-780-xx/xx750 - 860 nm
MSB-xx-1064-xx/xx950 - 1100 nm
MSB-xx-1550-xx/xx1250 - 1600 nm

The flexure base has two basic pin mounting orientations: vertical and horizontal. Although the vertical pin configuration is the most common, both the vertical and horizontal pins are compatible with our FiberBenches. Please be careful about sending the beam to an available port. A vertical pin configuration is defined as having the pins mounted parallel to the rotation adjustment screw. In the horizontal configuration, the pins will be mounted perpendicular to the rotation adjustment screw.

The flexture bases are also seperated by handedness: right or left. The right or left designation will determine the orientation of the cube, plate, or mirror with respect to the rotation adjustment screw and refers to how the beam will be turned. See the sketches and diagrams below for help in selecting a component.

ACB Pin Configuration
Horizontal and Vertical Pin Configurations
Click to Enlarge
Mounting Flexure Base into a FiberBench
Flexure Base on FT-114X149 Multi-Axis FiberBench
Click to Enlarge
Loading Tag Cloud Loading...

Please Give Us Your Feedback

Email   Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.


Please type the following key into the field to submit this form:
Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.

Would this product be useful to you?       Little Use   1 2 3 4Very Useful

Enter Comments Below:

Characters remaining 8000
Posted Comments:
Poster: jjurado
Posted Date: 2011-02-25 10:35:00.0
Response from Javier at Thorlabs to ctnono: Thank you for contacting us with your request. I have sent a copy of the Autocad pdf drawing for the PSCLB-HR-1550 to your e-mail address.
Poster: ctnono
Posted Date: 2011-02-24 22:26:27.0
Dear, In item of PSCLB-HR-1550 series, your website of datasheet was broken. Could you please send it to me. Thanks a lot. Best Regards, Cugi Chang
Click on any phrase below to search our site using our new Search Engine:
beam   beam splitter   beamsplitter   beamsplitters   bench   fiber   fiberbench   fibertable   module   ofr   polarization   polarizing   polarizing beam splitter cube   splitter   table
Adjustable Polarizing Cube Beamsplitter Modules
Adjustable Polarizing Cube Beamsplitter Modules
Zoom
Polarizing Beamsplitting Cube
  • Clear Aperture: Ø1.5 mm
  • Beam Deviation: 90° ± 5 arcmin
  • Wavefront Distortion: λ/4
  • Wavelengths: 780, 1064, or 1550 nm
  • Reflectance of S Component: >98%
  • Transmittance of P Component: >96% (R < 1.5%)
  • Cube Size: 5 mm
  • Tip/Tilt Adjustment: 6°
  • Rotation Adjustment: ±5°

These modules consist of a polarizing beamsplitter cube mounted on a flexure base. Each module provides a polarization-dependent split with an extinction ratio that is better than 1,000:1. These modules are useful for polarization-dependent measurements and applications that require a spatial beam overlap. Please see the Pin Configuration tab for help in selecting between vertical and horizonal mounting orientations, as well as left- and right-handed orientations. Please contact FiberBench@Thorlabs.com for special wavelengths.

PSCLB Orientation Diagram

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal/Imperial Price Available / Ships
PSCLB-VL-780 Support Documentation PSCLB-VL-780 Polarizing Beamsplitter Module, Vertical Left, 750 - 860 nm $400.00
Today
PSCLB-HL-780 Support Documentation PSCLB-HL-780 Polarizing Beamsplitter Module, Horizontal Left, 750 - 860 nm $400.00
Today
PSCLB-VR-780 Support Documentation PSCLB-VR-780 Polarizing Beamsplitter Module, Vertical Right, 750 - 860 nm $400.00
Today
PSCLB-HR-780 Support Documentation PSCLB-HR-780 Polarizing Beamsplitter Module, Horizontal Right, 750 - 860 nm $400.00
Today
PSCLB-VL-1064 Support Documentation PSCLB-VL-1064 Polarizing Beamsplitter Module, Vertical Left, 950 - 1100 nm $400.00
Today
PSCLB-HL-1064 Support Documentation PSCLB-HL-1064 Polarizing Beamsplitter Module, Horizontal Left, 950 - 1100 nm $400.00
Today
PSCLB-VR-1064 Support Documentation PSCLB-VR-1064 Polarizing Beamsplitter Module, Vertical Right, 950 - 1100 nm $400.00
Today
PSCLB-HR-1064 Support Documentation PSCLB-HR-1064 Polarizing Beamsplitter Module, Horizontal Right, 950 - 1100 nm $400.00
Today
PSCLB-VL-1550 Support Documentation PSCLB-VL-1550 Polarizing Beamsplitter Module, Vertical Left, 1200 - 1600 nm $400.00
Today
PSCLB-HL-1550 Support Documentation PSCLB-HL-1550 Polarizing Beamsplitter Module, Horizontal Left, 1200 - 1600 nm $400.00
Today
PSCLB-VR-1550 Support Documentation PSCLB-VR-1550 Polarizing Beamsplitter Module, Vertical Right, 1200 - 1600 nm $400.00
3-5 Days
PSCLB-HR-1550 Support Documentation PSCLB-HR-1550 Polarizing Beamsplitter Module, Horizontal Right, 1200 - 1600 nm $400.00
Today
Add To Cart
Adjustable Non-Polarizing Plate Beamsplitter Modules, 4:96
Adjustable Non-Polarizing Plate Beamsplitter Modules, 4:96
Zoom
Non-Polarizing Beamsplitting Plate
  • Clear Aperture: Ø1.5 mm
  • Split Ratios for Unpolarized Signals: 4:96
  • Beam Displacement: ~0.5 mm
  • Wavefront Distortion: λ/4
  • Wavelengths: 780, 1064, or 1550 nm
  • Plate Thickness: 1.0 mm
  • Tip/Tilt Adjustment: 6°
  • Rotation Adjustment: ±5°

These modules consist of a narrow-band non-polarizing beamsplitter plate mounted on a flexure base. These plate beamsplitters provide a 4:96 split and are useful for beam sampling applications. Please see the Pin Configuration tab for help in selecting between vertical and horizonal mounting orientations, as well as left- and right-handed orientations. For wavelengths besides the ones listed below, please contact FiberBench@Thorlabs.com.

MSB Orientation Diagram

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal/Imperial Price Available / Ships
MSB-VL-780-4/96 Support Documentation MSB-VL-780-4/96 4:96 Beamsplitter Module, Vertical Left, 780 nm $375.00
Today
MSB-HL-780-4/96 Support Documentation MSB-HL-780-4/96 4:96 Beamsplitter Module, Horizontal Left, 780 nm $375.00
Today
MSB-VR-780-4/96 Support Documentation MSB-VR-780-4/96 4:96 Beamsplitter Module, Vertical Right, 780 nm $375.00
Today
MSB-HR-780-4/96 Support Documentation MSB-HR-780-4/96 4:96 Beamsplitter Module, Horizontal Right, 780 nm $375.00
Today
MSB-VL-1064-4/96 Support Documentation MSB-VL-1064-4/96 4:96 Beamsplitter Module, Vertical Left, 1064 nm $375.00
Today
MSB-HL-1064-4/96 Support Documentation MSB-HL-1064-4/96 4:96 Beamsplitter Module, Horizontal Left, 1064 nm $375.00
Today
MSB-VR-1064-4/96 Support Documentation MSB-VR-1064-4/96 4:96 Beamsplitter Module, Vertical Right, 1064 nm $375.00
Today
MSB-HR-1064-4/96 Support Documentation MSB-HR-1064-4/96 4:96 Beamsplitter Module, Horizontal Right, 1064 nm $375.00
Today
MSB-VL-1550-4/96 Support Documentation MSB-VL-1550-4/96 4:96 Beamsplitter Module, Vertical Left, 1550 nm $375.00
Today
MSB-HL-1550-4/96 Support Documentation MSB-HL-1550-4/96 4:96 Beamsplitter Module, Horzontal Left, 1550 nm $375.00
Today
MSB-VR-1550-4/96 Support Documentation MSB-VR-1550-4/96 4:96 Beamsplitter Module, Vertical Right, 1550 nm $375.00
Today
MSB-HR-1550-4/96 Support Documentation MSB-HR-1550-4/96 4:96 Beamsplitter Module, Horzontal Right, 1550 nm $375.00
Today
Add To Cart
Adjustable Non-Polarizing Plate Beamsplitter Modules, 50:50
Adjustable Non-Polarizing Plate Beamsplitter Modules, 50:50
Zoom
Non-Polarizing Beamsplitting Plate
  • Clear Aperture: Ø1.5 mm
  • Split Ratios for Unpolarized Signals: 50:50
  • Beam Displacement: ~0.5 mm
  • Wavefront Distortion: λ/4
  • Wavelengths: 780, 1064, or 1550 nm
  • Plate Thickness: 1.0 mm
  • Tip/Tilt Adjustment: 6°
  • Rotation Adjustment: ±5°

These modules consist of a narrow-band non-polarizing beamsplitter plate mounted on a flexure base. These plate beamsplitters are useful for beam sampling applications or applications that require a relatively flat and neutral 50:50 split. Please see the Pin Configuration tab for help in selecting between vertical and horizonal mounting orientations, as well as left- and right-handed orientations. For wavelengths besides the ones listed below, please contact FiberBench@Thorlabs.com.

MSB Orientation Diagram

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal/Imperial Price Available / Ships
MSB-VL-780-50/50 Support Documentation MSB-VL-780-50/50 50:50 Beamsplitter Module, Vertical Left, 780 nm $375.00
Today
MSB-HL-780-50/50 Support Documentation MSB-HL-780-50/50 50:50 Beamsplitter Module, Horizontal Left, 780 nm $375.00
Today
MSB-VR-780-50/50 Support Documentation MSB-VR-780-50/50 50:50 Beamsplitter Module, Vertical Right, 780 nm $375.00
Today
MSB-HR-780-50/50 Support Documentation MSB-HR-780-50/50 50:50 Beamsplitter Module, Horizontal Right, 780 nm $375.00
3-5 Days
MSB-VL-1064-50/50 Support Documentation MSB-VL-1064-50/50 50:50 Beamsplitter Module, Vertical Left, 1064 nm $375.00
Today
MSB-HL-1064-50/50 Support Documentation MSB-HL-1064-50/50 50:50 Beamsplitter Module, Horizontal Left, 1064 nm $375.00
Today
MSB-VR-1064-50/50 Support Documentation MSB-VR-1064-50/50 50:50 Beamsplitter Module, Vertical Right, 1064 nm $375.00
Today
MSB-HR-1064-50/50 Support Documentation MSB-HR-1064-50/50 50:50 Beamsplitter Module, Horizontal Right, 1064 nm $375.00
Today
MSB-VL-1550-50/50 Support Documentation MSB-VL-1550-50/50 50:50 Beamsplitter Module, Vertical Left, 1550 nm $375.00
Today
MSB-HL-1550-50/50 Support Documentation MSB-HL-1550-50/50 50:50 Beamsplitter Module, Horizontal Left, 1550 nm $375.00
Today
MSB-VR-1550-50/50 Support Documentation MSB-VR-1550-50/50 50:50 Beamsplitter Module, Vertical Right, 1550 nm $375.00
Today
MSB-HR-1550-50/50 Support Documentation MSB-HR-1550-50/50 50:50 Beamsplitter Module, Horizontal Right, 1550 nm $375.00
Today
Add To Cart
