Lithium Niobate Electro-Optic Modulators

Thorlabs free-space electro-optic (EO) amplitude and phase lithium niobate modulators combine our experience with crystal growth and electro-optic materials. Our EO modulators use MgO-doped lithium niobate for high power operation. The modulators have an SMA RF input, which is directly compatible with our HVA200 High Voltage Amplifier (shown below). We offer both broadband DC-coupled and high Q resonant models.

Click to Enlarge

Features

High Performance in a Compact Package
Broadband DC Coupled or High-Q Resonant
2 mm Diameter Clear Aperture
MgO-Doped Lithium Niobate Crystal
SMA RF Modulation Input Connector
DC to 100 MHz
Custom OEM Versions Available

DC-Coupled Broadband Modulators

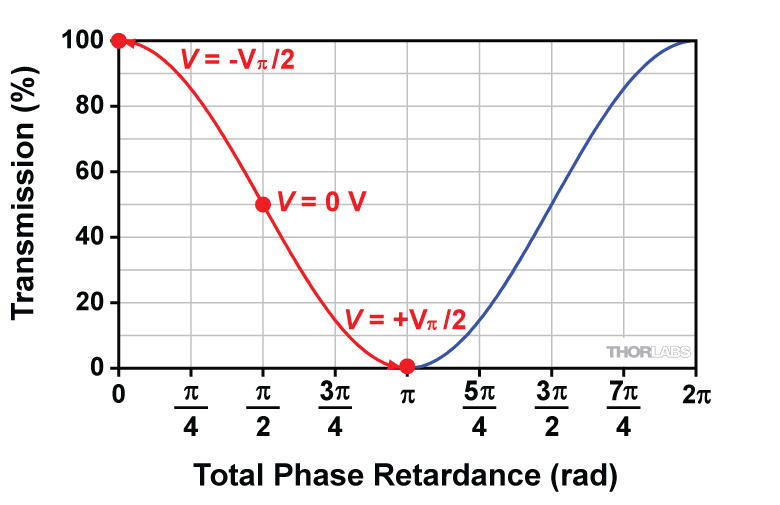

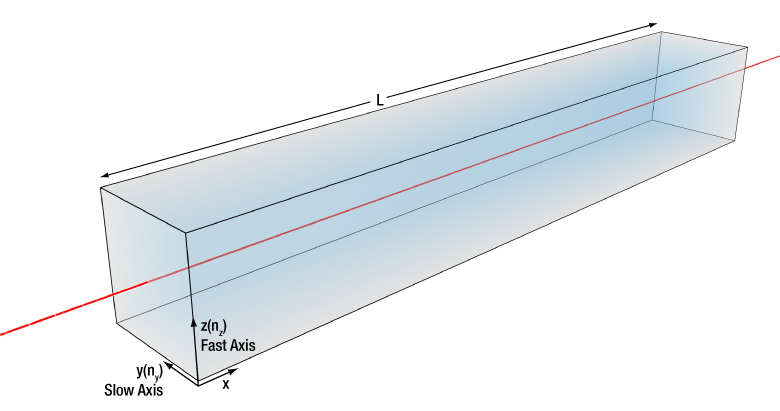

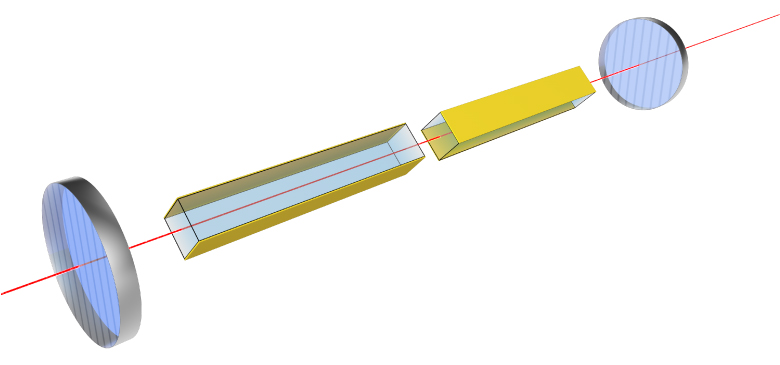

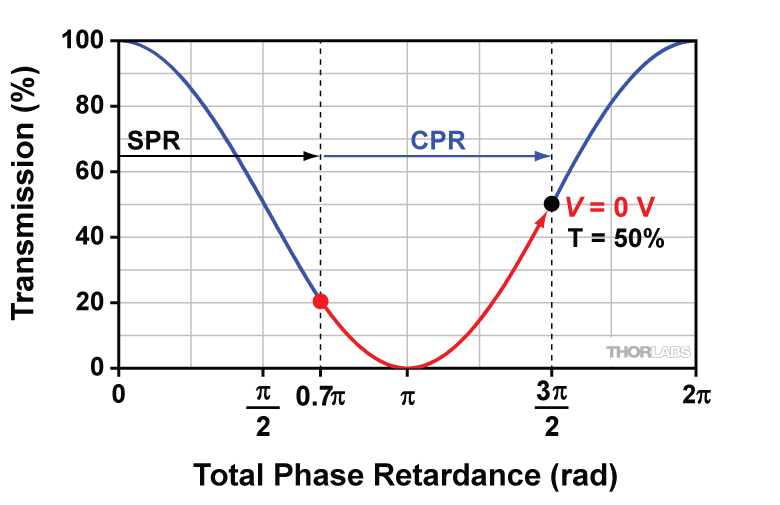

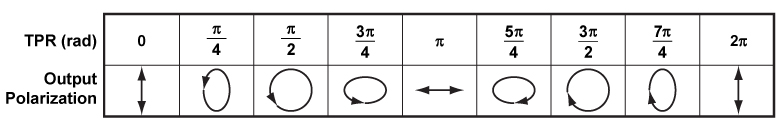

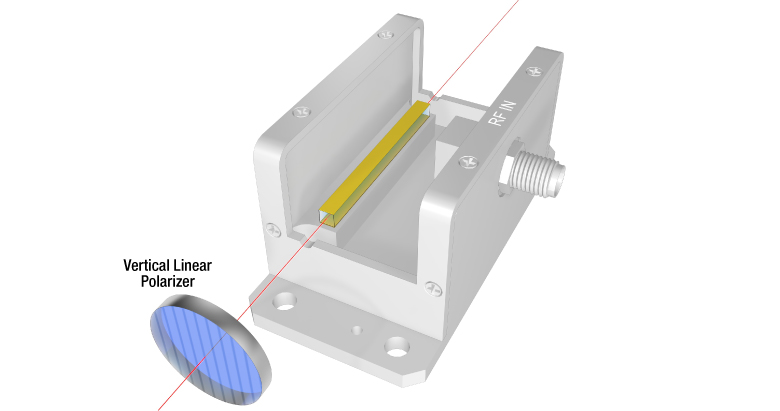

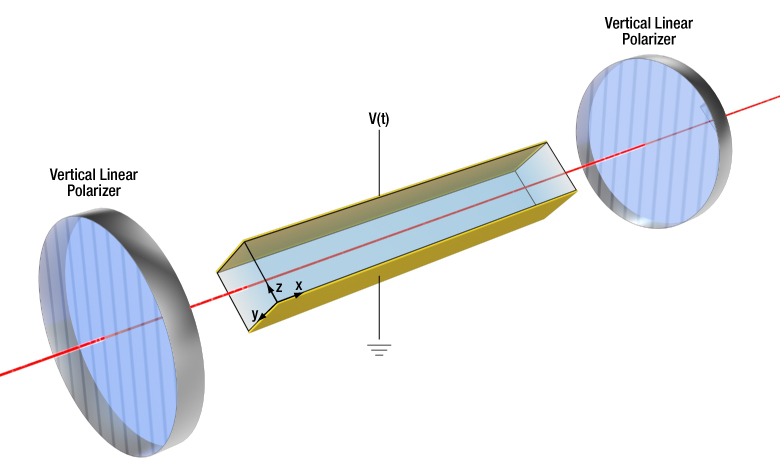

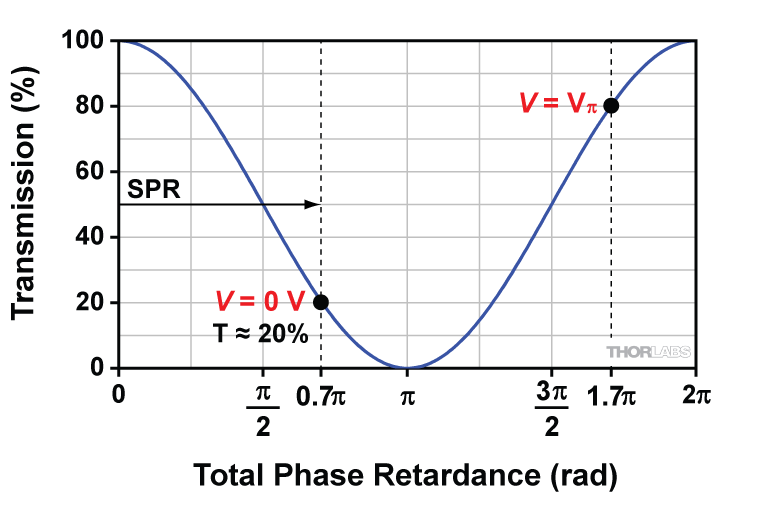

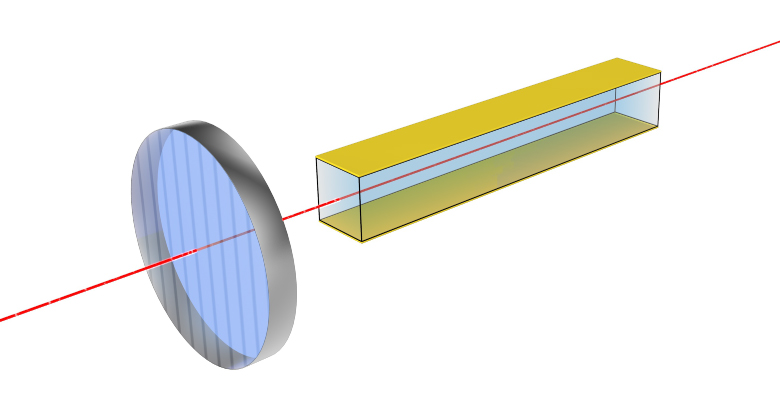

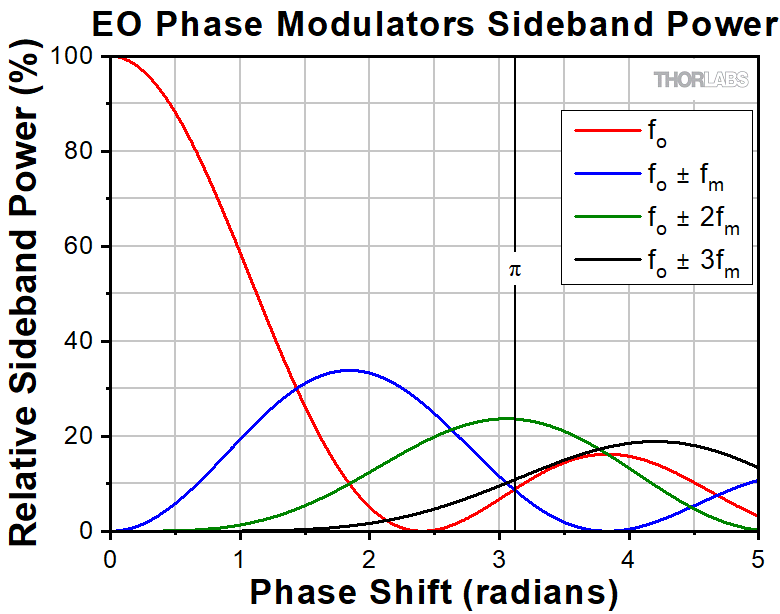

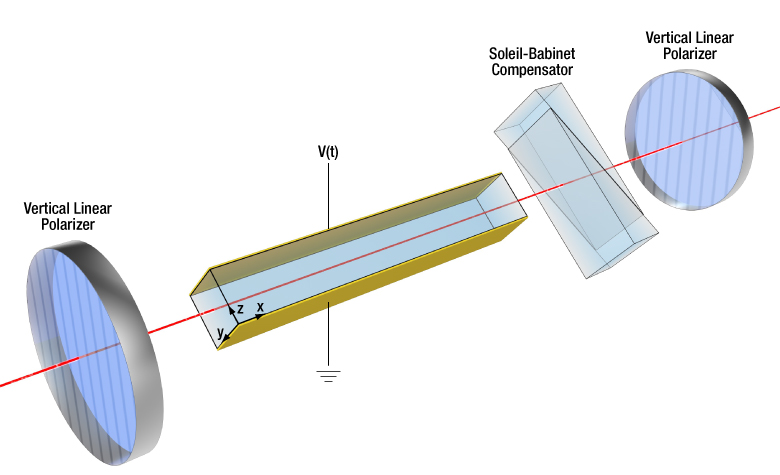

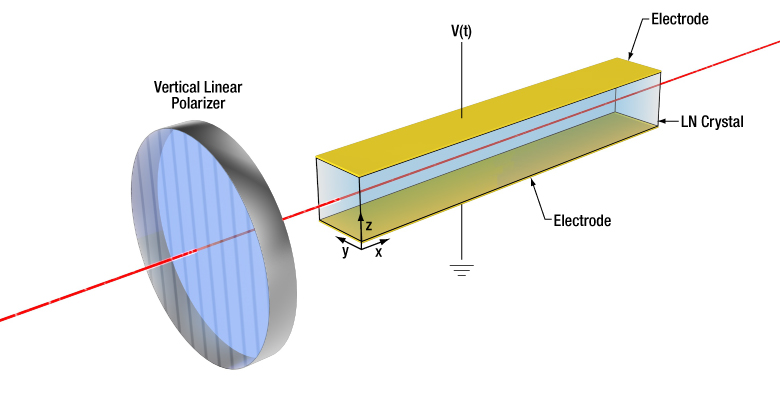

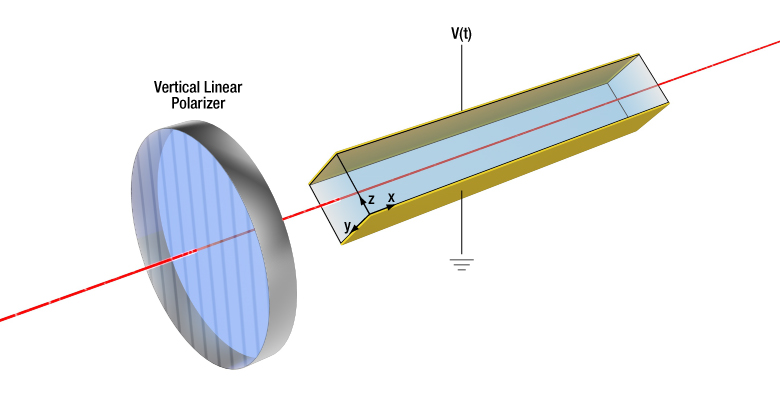

Our broadband EO modulators consist of an EO crystal packaged in a housing optimized for maximum RF performance. The RF drive signal is connected directly to the EO crystal via the SMA RF input. An external RF driver supplies the drive voltage for the desired modulation. The crystal may be modulated from DC up to the frequency limits of the external RF driver. Please see the Specs tab for amplifier requirements. These broadband amplitude and phase modulators are offered with a -C4 (400 - 600 nm), -C1 (600 - 900 nm), -C2 (900 - 1250 nm), or -C3 (1250 - 1650 nm) AR coating. See the Reflectance Graphs tab for more information on the reflectance of these coatings.

High Q Resonant Modulators

Thorlabs' Resonant EO Modulators make use of a high-Q resonant circuit. Compared to broadband EO modulators, this dramatically reduces the operating voltage required to drive the modulator for fixed-frequency applications. Amplitude and phase modulator versions operating at 20 MHz are offered with a -C1 AR coating (600 - 900 nm). See the Graphs tab for more information on the reflectance of this coating. Standard and custom AR coating options are available, as well as versions with user-specified resonance frequencies from 0.1 to 100 MHz. Please contact Tech Support to discuss your application needs. Please see the Specs tab for more information on these modulators.

Driver and Accessories

Our HVA200 high voltage amplifier is ideal for driving our standard EO Modulators. It features a ±200 V output at 100 mA of continuous current, a 1MHz bandwidth, and low noise (see the presentation below for more details). Our resonant modulators can be driven by any standard laboratory function generator.

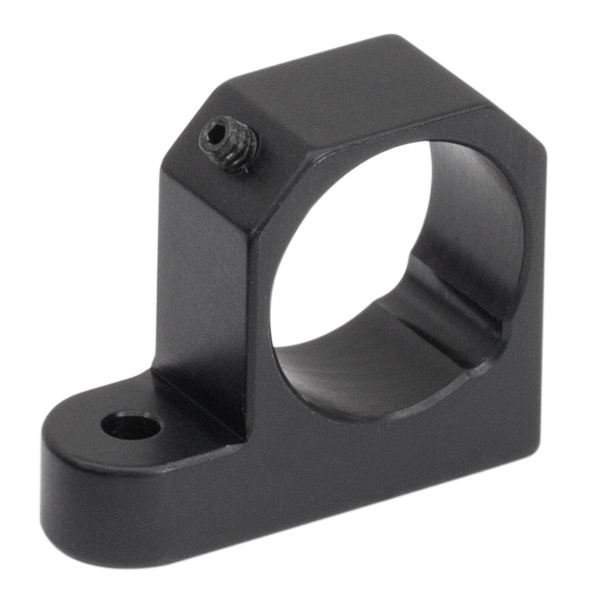

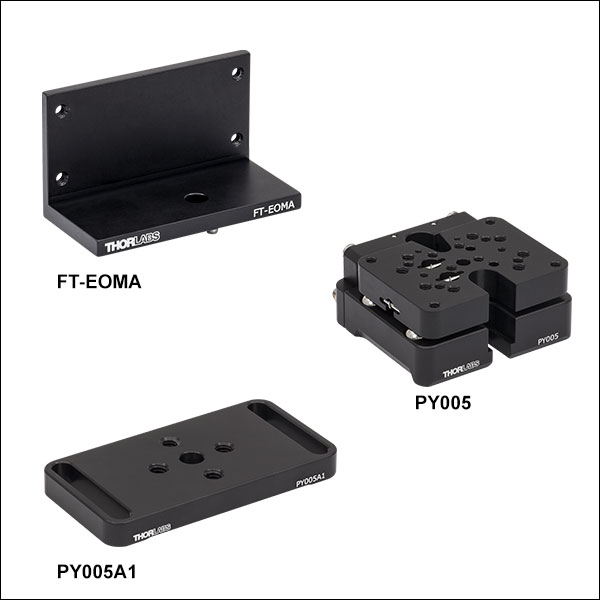

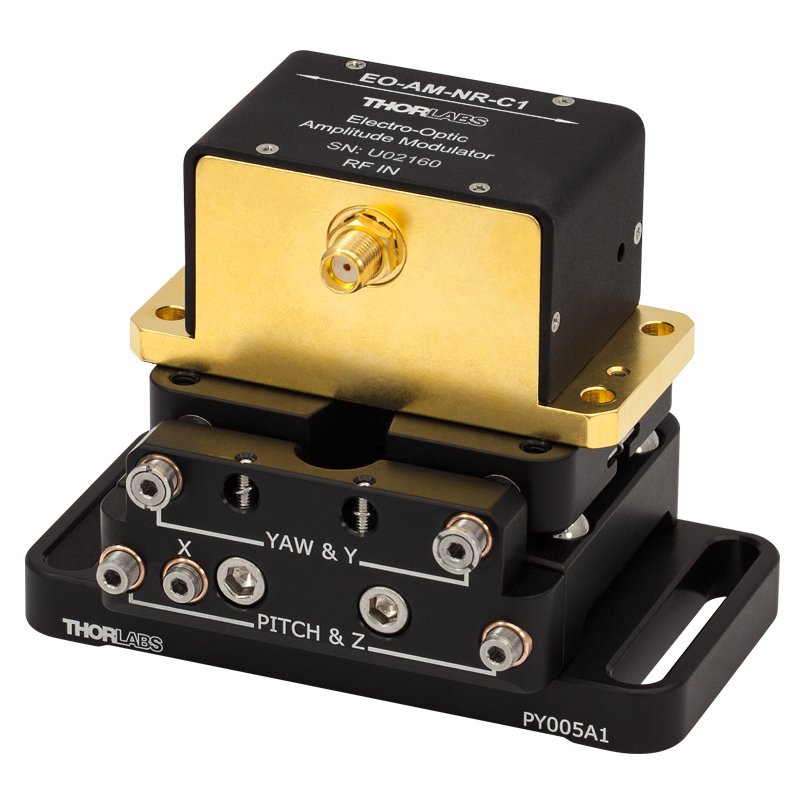

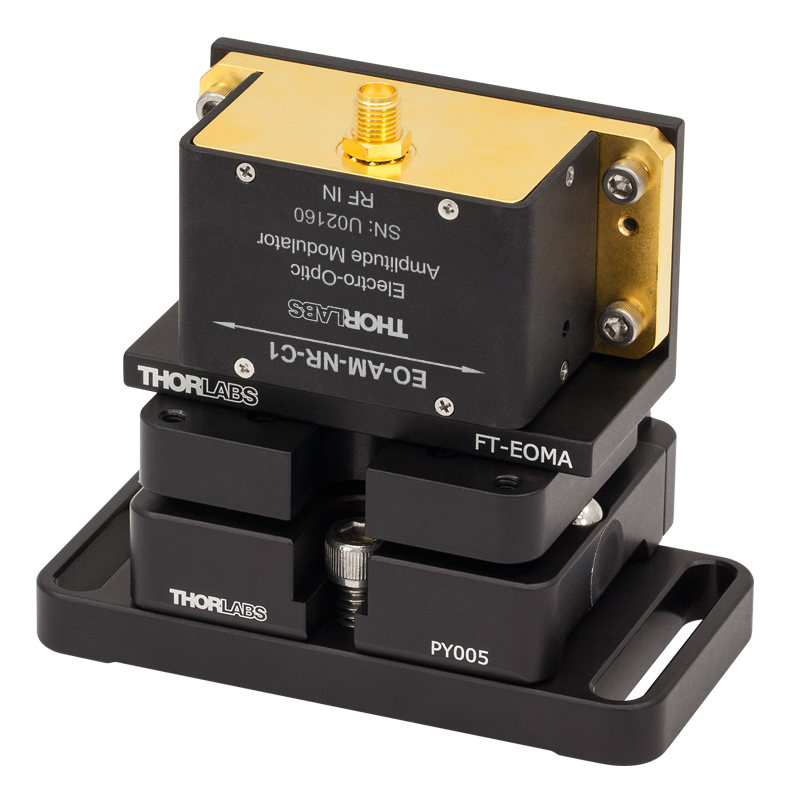

Thorlabs also offers a Glan-Thompson Polarizer mounting adapter, as well as an EO modulator mount for integration into our fiberbench collimation hardware (see below).

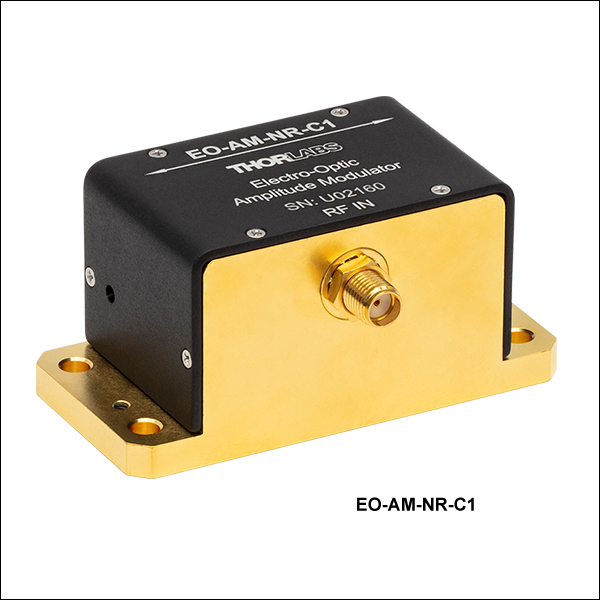

Modulators

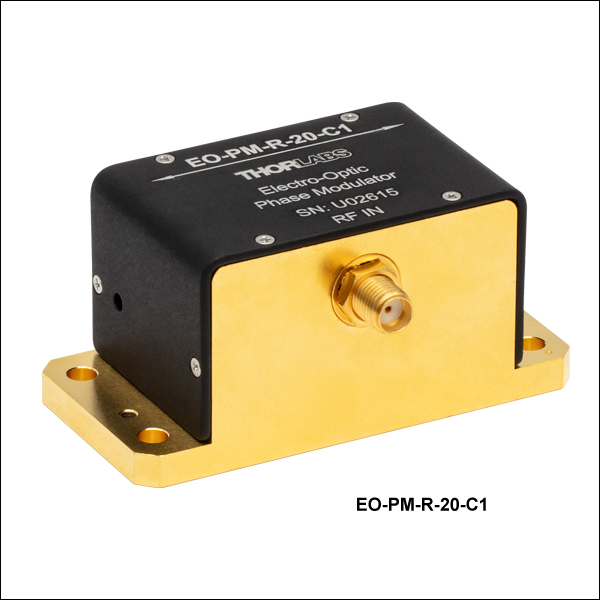

Item #	EO Amplitude Modulator EO-AM-NR	EO Phase Modulator EO-PM-NR	EO Resonant Modulator EO-xM-R
Modulator Crystal	Lithium Niobate (LiNbO₃) doped with MgO
Wavelength Range
C1	600 to 900 nm	600 to 900 nm	600 to 900 nm
C2	900 to 1250 nm	900 to 1250 nm	N/A*
C3	1250 to 1650 nm	1250 to 1650 nm	N/A*
C4	400 to 600 nm	400 to 600 nm	N/A*
Clear Aperture	2 mm Diameter	2 mm Diameter	2 mm Diameter
Input Connector	SMA Female	SMA Female	SMA Female
Resonant Frequency Range	Broadband	Broadband	20 MHz**

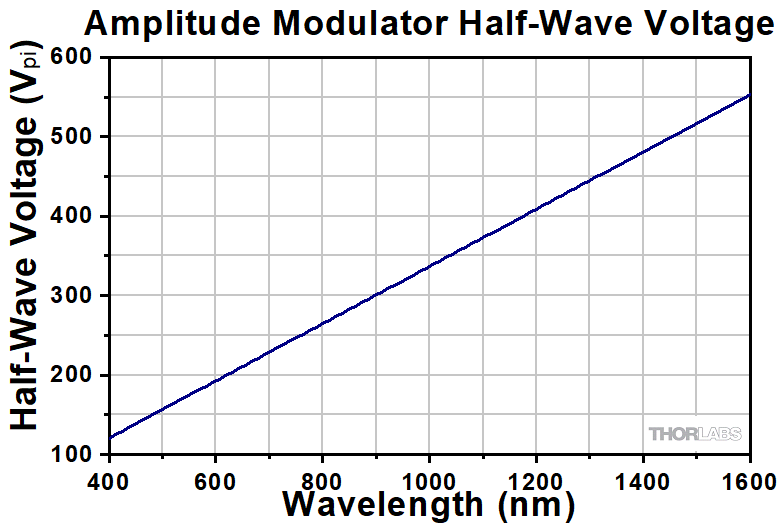

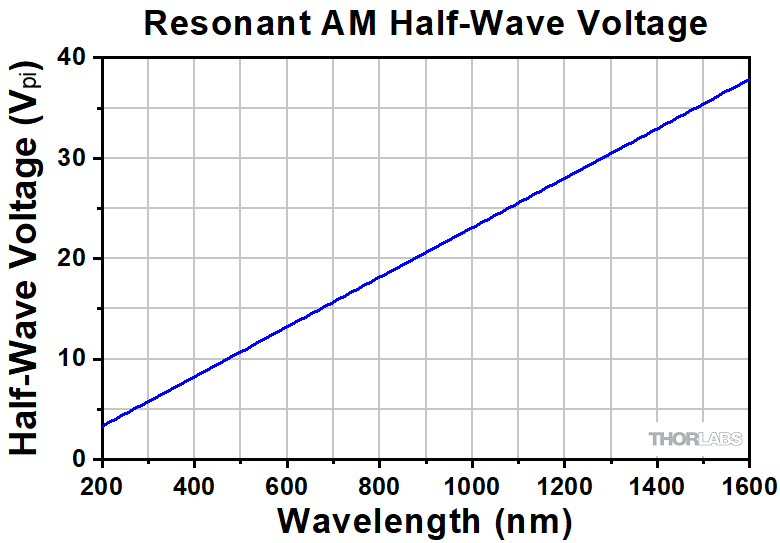

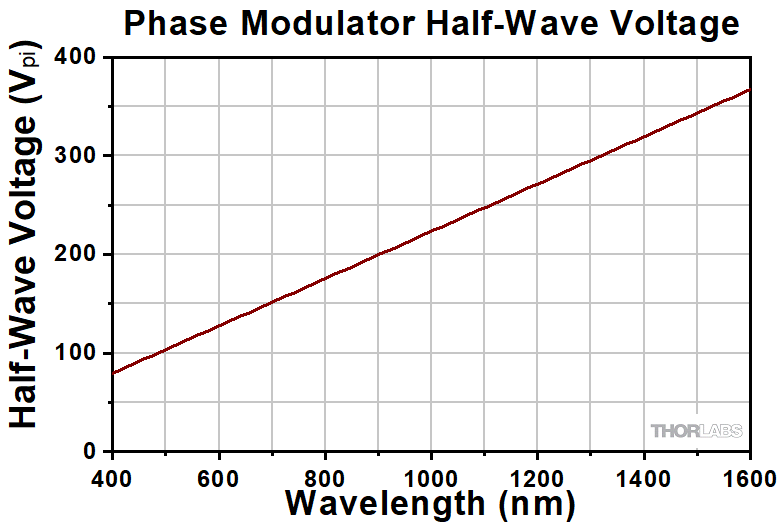

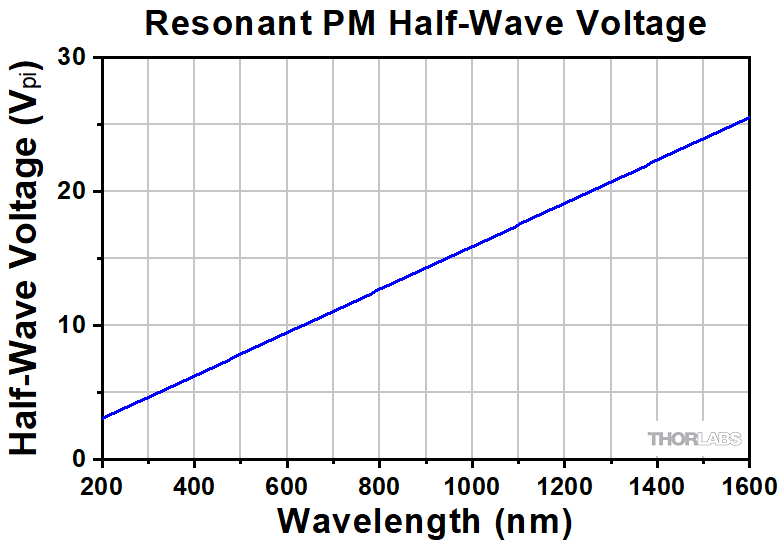

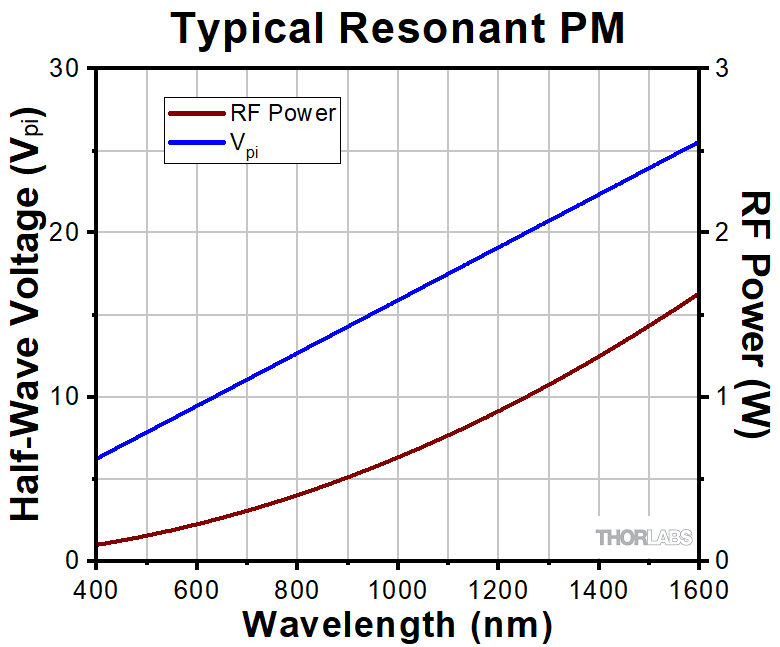

Half Wave Voltage, V_π (Click for Plot)	205 V at 633 nm (Typical)	136 V at 633 nm (Typical)	15 V at 633 nm (Typical)
Extinction Ratio	>10 dB	NA	>10 dB
Input Capacitance/Impedance	14 pF	14 pF	50 Ohms
Max RF Input Power	NA	NA	3 W
Max Optical Power Density	2 W/mm² @ 532 nm, 4 W/mm² @ 1064 nm	2 W/mm² @ 532 nm, 4 W/mm² @ 1064 nm	2 W/mm² @ 532 nm, 4 W/mm² @ 1064 nm

*Other AR coating ranges are available upon request. Contact Tech Support for details.
**Resonant frequencies from 0.1 - 100 MHz are available. Contact Tech Support for details.

Amplifier

Item #	HVA200
Physical Features
Input Connector	BNC
Output Connector	BNC
HV Monitor Connector	BNC
Bias Adjustment	Digital Encoder
Output Enable	Front Panel Pushbutton
Output HV Indicator	Bright LED
Power Switch	Rocker Switch
Dimensions	9″ x 5″ x 12.5″ 228.6 mm x 127 mm x 317.5 mm
Weight	11.6 lbs
Other	Tilting Rubber-Padded Feet
Max Ratings
Max Output Current	100 mA DC
Max Input Voltage Range	–10 to 10 V
Fuse Rating	630 mA @ 115 VAC (5x20mm SLO-BLO) 400 mA @ 230 VAC (5x20mm SLO-BLO)
Electrical Characteristics
Max Input Voltage Range	–10 to 10 V
Input Impedance	1 kΩ
Output Voltage	–200 to 200 V
Output Impedance	50 Ω
Slew Rate	400 V/μs
Output Noise	1.5 mV RMS
Voltage Gain*	–20 ± 2%
DC Bias Adjust	–200 to 200 V
HV Monitor to Output Ratio:
With Input Impedance of 50 Ω	40:1 (V_out/40 ± 6%)
With Input Impedance of >10 kΩ	20:1 (V_out / 20 ± 6%)
AC Power	115 V/230 V, 50-60 Hz, 70 VA
*NOTE: The voltage gain is inverting to preserve the high slew rate of the output amplifier (i.e., a -1 V input results in +20 V output).

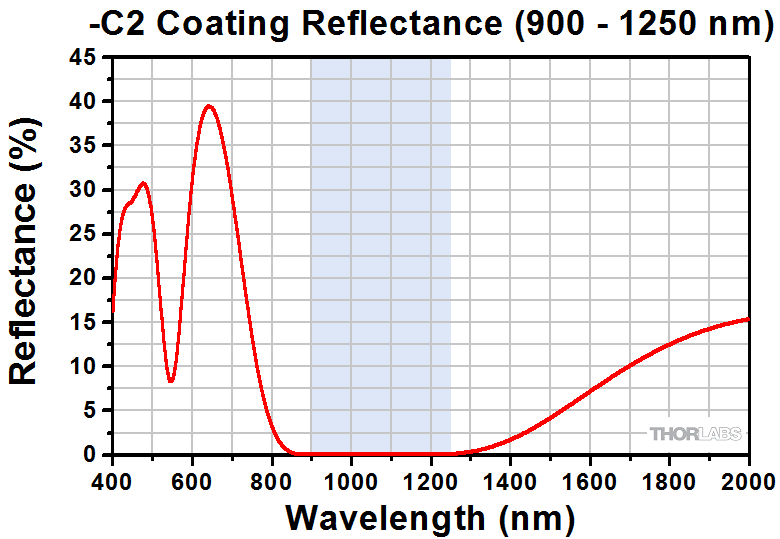

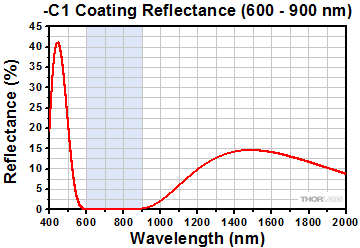

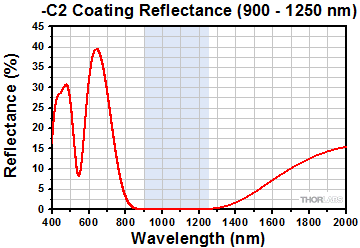

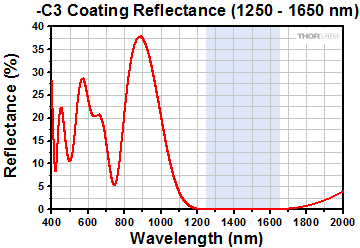

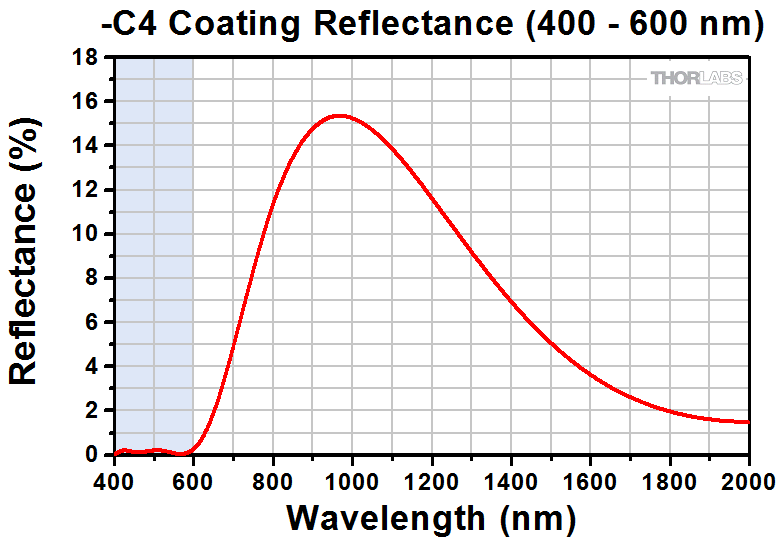

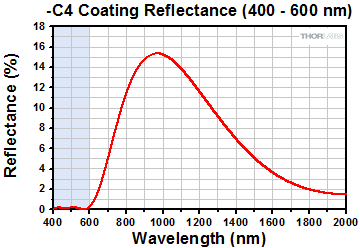

These plots show the reflectance of each of our four dielectric coatings for a typical coating run. The shaded region in each graph denotes the spectral range over which the coating is highly transmissive.

Click to Enlarge
Raw Data

Click to Enlarge
Raw Data

Click to Enlarge
Raw Data

Click to Enlarge
Raw Data

HVA200 Connections

Modulation Input Signal

BNC Female

± 10 V, 10 mA

HV Output Monitor

BNC Female

± 10 V, 200 mA, Min Load 50 Ω

HV Output

BNC Female

± 200 V, 100 mA

EO Modulators

RF Modulation Signal - SMA Female

SMA Female

Please Give Us Your Feedback

Email		Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.

Please type the following key into the field to submit this form:

Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.
